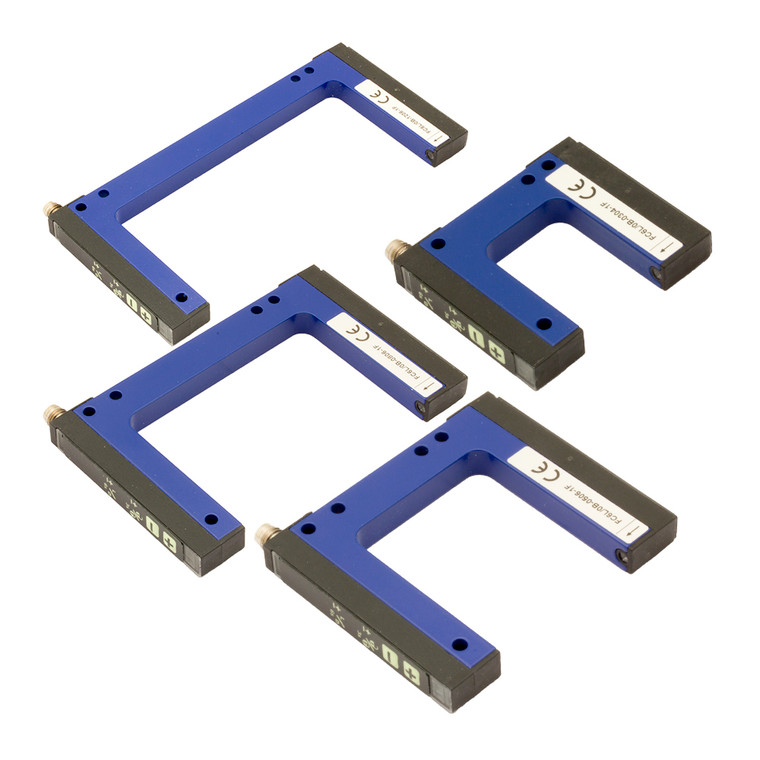

Datasensing FC6L/0B-M506-1F Sensors
Datasensing
$469.18
The Datasensing FC6L/0B-M506-1F Sensors are designed for precision and reliability in industrial applications. Featuring a 5mm slot width and 59mm depth, these sensors offer simple and accurate manual adjustments using intuitive -/+ buttons. With a robust metal housing and infrared emission, they ensure durability and performance in challenging environments. The sensors are equipped with a LASER emission class 1 for enhanced detection capabilities, allowing for the identification of objects as small as 0.05mm.
The sensors provide versatile functionality with light/dark switching, selectable by button, and support both PNP and NPN output types. They operate within a temperature range of -20°C to +60°C and are equipped with M8 connectors (4 pins) for easy integration. With a high switching frequency of 10 kHz and a rapid response time of 50 µs, these sensors are ideal for high-speed applications.
Additional features include short-circuit and reverse polarity protection, ensuring safe and reliable operation. The sensors are CE approved and comply with EMC compatibility standards EN 60947-5-2, offering IP65 mechanical protection. The painted aluminium housing and polyamide/glass active head material contribute to the sensor's lightweight design, weighing only 80g. With a nominal sensing distance of 5mm and a no-load supply current of ? 40mA, these sensors are efficient and effective for a wide range of industrial uses.
- Nominal sensing distance:
- 5mm
- minimum detectable object:
- 0.05mm
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Photoelectric slot
- Output type:
- NPN / PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 10kHz
- Response time:
- 50 µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output), Red (adjustment or block keypad)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LASER Red (670nm) class1
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 80g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 4pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 20°C + 50°C
- Storage temperature:
- - 30°C + 80°C
- Width slot detection:
- 5mm
- Depth slot detection:
- 59mm
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP65
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP65
