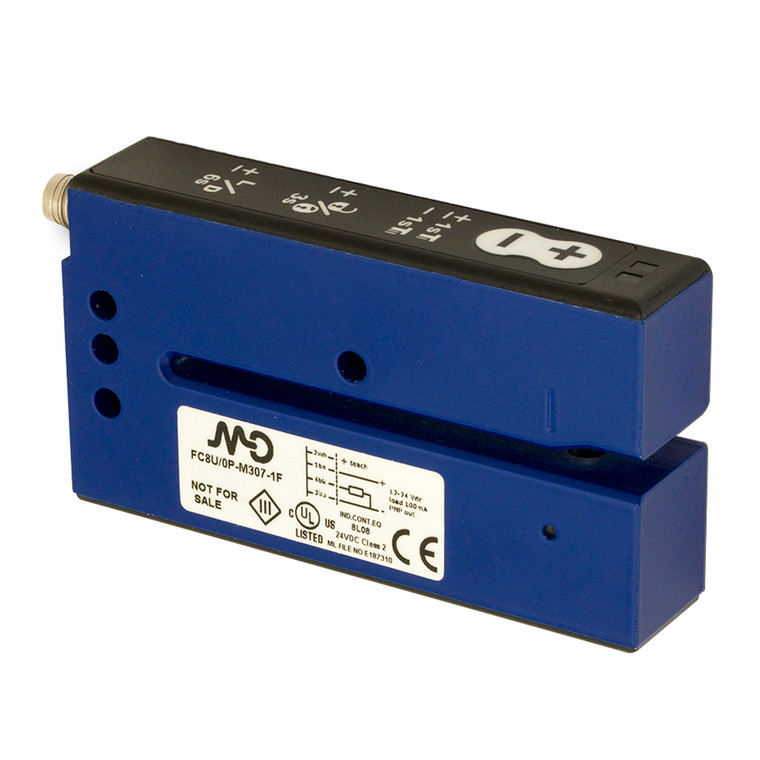

Datasensing FC8U/0B-M307-1F Sensors
Datasensing
$886.48
The Datasensing FC8U/0B-M307-1F Sensors are designed for precise label detection with a slot width of 3mm and a depth of 69mm. Utilizing advanced ultrasonic technology, these sensors are ideal for detecting transparent labels and any opaque materials. They feature a compact design with an aluminum case, making them easy to install in tight spaces. The sensors offer both NPN and PNP output types, with LO/DO functionality that is fully configurable. With a maximum switching frequency of 1,500 Hz, they ensure rapid and accurate detection. The sensors operate on a voltage range of 12 - 24Vdc and have a no-load supply current of ? 45mA. They are equipped with short-circuit and reverse polarity protection, ensuring reliable performance. The M8 4-pole connector facilitates easy integration into existing systems. These sensors are CE and UL approved, with an IP65 degree of protection, making them suitable for various industrial environments. The operating temperature range is from +5°C to +55°C, with a storage temperature range of -20°C to +70°C.
- Nominal sensing distance:
- 3mm
- minimum detectable object:
- 2mm
- Si:
- Yes
- Sensitivity adjustment:
- Yes
- +/-50 µm a 150m/min:
- +/-20 µm at 120m/min
- 200 m/min:
- 180 m/min
- 2mm:
- 2mm
- Output type:
- NPN/PNP
- Output Function:
- LO/DO selectable
- Switching frequency:
- 1.500Hz
- Operating Voltage:
- 12 - 24Vdc
- No-Load supply current:
- ? 45mA
- Load current:
- 100mA
- Output voltage drop:
- ? 2 V @ IL =100 mA
- Max ripple content:
- ? 10%
- Time delay before availability:
- 300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Ultrasonic
- Weight:
- 160g
- Housing Material:
- Painted aluminum
- Connections:
- M8 plug 4 pin
- Storage temperature:
- - 20°C + 70°C
- Width slot detection:
- 3mm
- Depth slot detection:
- 69mm
- Approvals:
- CE UL
- EMC compatibility:
- EN 60529
- Degree of protection:
- IP65
- Mechanical Protection:
- IP65
