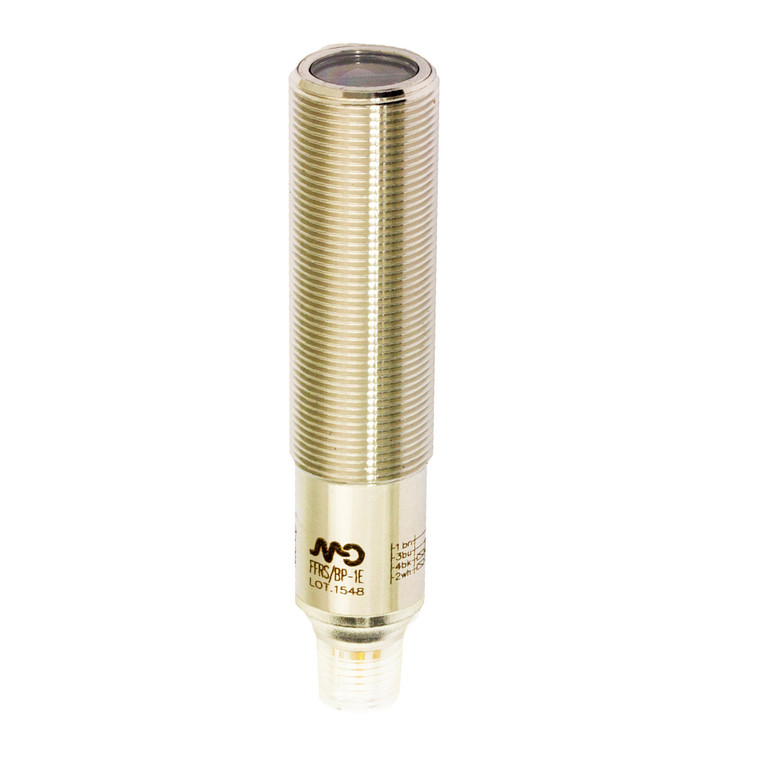

Photoelectric sensor Axial Diffuse 400mm adj. PNP L/D conn. M12
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 500Hz
- Response time:
- 1ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green Stability
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 60g
- Housing Material:
- Stainless steel AISI 316L / PA12 plug
- Connections:
- M12 plug
- Active Head Material:
- PA12
- Tightening torque:
- 50Nm
- Operating temperature:
- -25°C +80°C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus ECOLAB Diversey
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP68, IP69K
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 80°C (Without freeze)
- Mechanical Protection:
- IP68, IP69K
