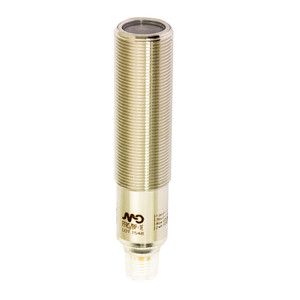

The Datasensing FFIH/00-1EAN Sensors are high-performance photoelectric sensors designed for precise and reliable detection. Featuring an axial emitter with a nominal sensing distance of 20 meters, these sensors are housed in durable stainless steel AISI 316L with a PA12 plug, ensuring robust performance in demanding environments. The M18 diameter and M12 connection make installation straightforward, while the IP67 and IP69K ratings provide excellent protection against dust and water ingress.
With a repeat accuracy of 5% and no need for sensitivity adjustment, these sensors offer consistent performance. They operate on a voltage range of 10 to 30VDC, with a no-load supply current of ? 40mA and a maximum ripple content of ?10%. The LED indicators provide clear status updates, with green indicating stability and yellow showing the output state. The sensors are equipped with short-circuit and reverse polarity protection, enhancing their reliability.
The emission is LED Infrared at 880nm, and the active head material is PA12, ensuring optimal performance. The sensors are approved by CE, cULus, ECOLAB, and Diversy Ex, and comply with EMC compatibility standard EN 60947-5-2. They are supplied with M18 x 1 nuts for easy mounting and have a tightening torque of 50Nm. Operating efficiently in temperatures ranging from -25°C to +80°C, these sensors are ideal for a variety of industrial applications.
- Nominal sensing distance:
- 20m
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Emitter
- Emitter/Receiver:
- Emitter
- Optic position:
- Axial
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Max ripple content:
- ?10%
- LED indicators:
- Green Stability
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Housing Material:
- Stainless steel AISI 316L / PA12 plug
- Connections:
- M12 plug
- Active Head Material:
- PA12
- Tightening torque:
- 50Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus ECOLAB Diversy Ex: II 3G Ex nA IIC T5 Gc II 3D Ex tc IIIB T95°C Dc
- EMC compatibility:
- EN 60947-5-2
- Supplied Accessories:
- Nuts M18 x 1
- Dimensions:
- M18x1/L=83mm
- Operating Temperature:
- - 25°C + 80°C (Without freeze)
- Mechanical Protection:
- IP68, IP69K
