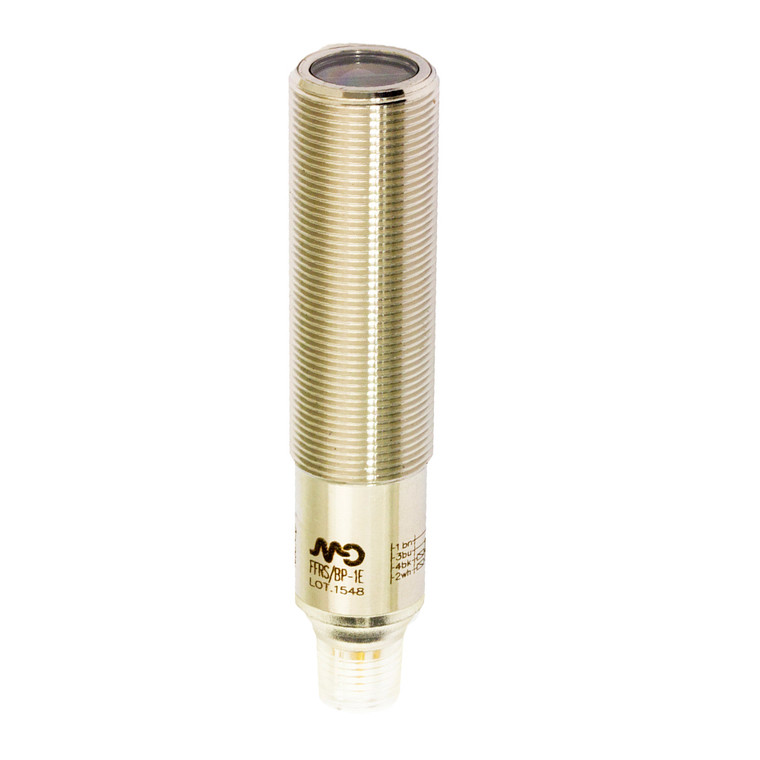

Datasensing FFRL/BP-1EV5 Sensors
Datasensing
$155.83
The Datasensing FFRL/BP-1EV5 Sensors are designed for precision and reliability in detecting transparent objects. Featuring a photoelectric sensor with an M18 axial retroreflective design, these sensors offer a nominal sensing distance of 1.5 meters and a minimum sensing distance of 100mm, ensuring accurate performance even in challenging environments. The sensor's sensitivity can be easily adjusted using the teach-in method, and it boasts a repeat accuracy of 5%. With a robust stainless steel AISI 316L housing and PA12 plug, the sensor is built to withstand harsh conditions, offering mechanical protection rated at IP68 and IP69K.
The FFRL/BP-1EV5 operates on a voltage range of 10 to 30VDC, with a no-load supply current of ? 35mA and a load current of ?100mA. It features a PNP NO+NC output type, with a switching frequency of 500Hz and a response time of just 1ms, making it ideal for high-speed applications. The sensor is equipped with LED indicators for green stability and yellow output state, providing clear visual feedback. It also includes short-circuit and reverse polarity protection for enhanced safety.
Designed to be interference-resistant, the sensor can handle external light up to 5,000 lux from incandescent lamps and 10,000 lux from sunlight. It is approved by CE, cULus, and ECOLAB Diversey, and complies with EMC compatibility standards EN 60947-5-2. With dimensions of Ø 17.5mm and a length of 83mm, the sensor is compact yet powerful, suitable for a wide range of industrial applications.
- Nominal sensing distance:
- 1,5m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Minimum sensing distance (blind zone):
- 100mm
- Function Principle:
- Transparent object
- Notes:
- On RL113G or RL116 reflector
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 500Hz
- Response time:
- 1ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green Stability
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5.000lux (incandescent lamp), 10.000lux (sunlight)
- Housing Material:
- Stainless steel AISI 316L / PA12 plug
- Connections:
- M12 plug
- Active Head Material:
- PA12
- Diameter/Dimension:
- Ø 17,5mm
- Approvals:
- CE cULus ECOLAB Diversey
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Dimensions:
- 17,5/L=83mm
- Operating Temperature:
- - 25°C + 80°C (Without freeze)
- Mechanical Protection:
- IP68, IP69K
