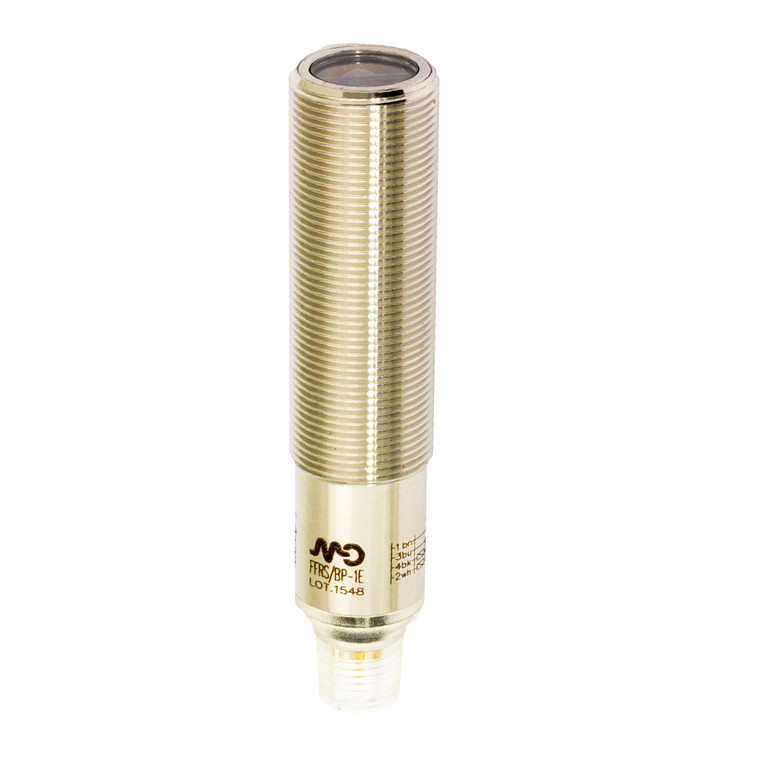

Datasensing FFRN/BP-1EAN Sensors
Datasensing
$210.39
The Datasensing FFRN/BP-1EAN Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring an axial retroreflective design, these sensors offer a nominal sensing distance of 4.5 meters with adjustable sensitivity through a convenient teach-in function. The sensors operate on a PNP NO+NC output type, providing both normally open and normally closed output functions. With a high switching frequency of 500Hz and a rapid response time of 1ms, they ensure quick and accurate performance.
Built to withstand challenging environments, the sensors are housed in durable stainless steel AISI 316L with a PMMA active head material, offering excellent resistance to shocks and vibrations as per IEC standards. They are equipped with LED indicators for stability and output state, and feature short-circuit and reverse polarity protection for enhanced safety. The sensors are compatible with a wide operating voltage range of 10 to 30VDC and have a low no-load supply current of ? 35mA.
Designed for use in hazardous areas, the sensors are approved for Ex nA IIC T6 and Ex tD A22 applications, with an IP67 rating for dust and water protection. They also meet EMC compatibility standards and are supplied with M18 x 1 nuts for easy installation. Ideal for industrial applications, these sensors offer reliable performance in temperatures ranging from -25°C to +80°C, without freezing.
- Nominal sensing distance:
- 4,5m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 500Hz
- Response time:
- 1ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green Stability
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5.000lux (incandescent lamp), 10.000lux (sunlight)
- Housing Material:
- Stainless steel AISI 316L / PA12 plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 50Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus ECOLAB Diversy Ex: II 3G Ex nA IIC T5 Gc II 3D Ex tc IIIB T95°C Dc
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- Nuts M18 x 1
- Dimensions:
- M18x1/L=83mm
- Operating Temperature:
- - 25°C + 80°C (Without freeze)
- Mechanical Protection:
- IP68, IP69K
- User Manuals:
- View
