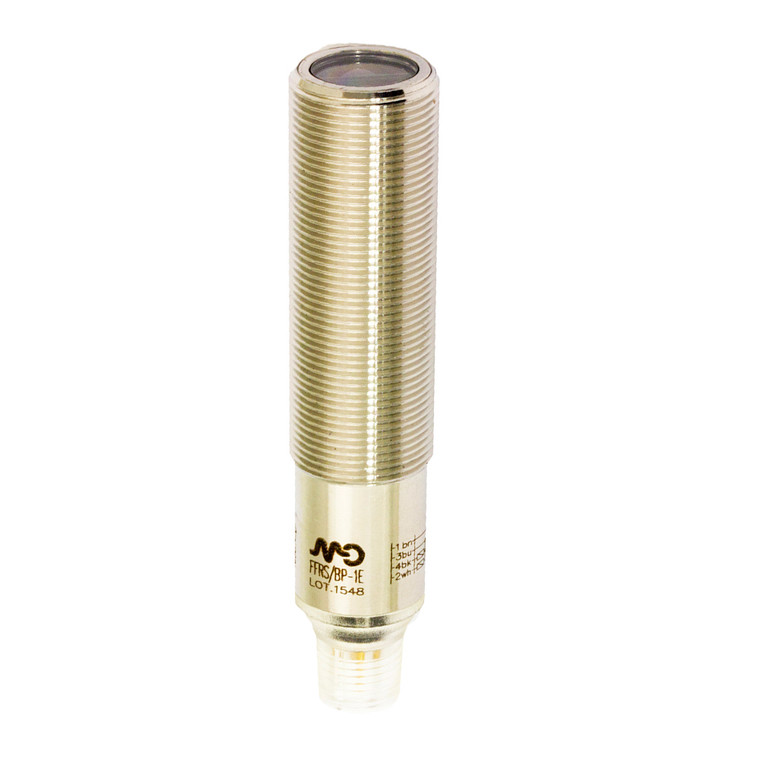

Datasensing FFRN/BP-1EV5 Sensors

The Datasensing FFRN/BP-1EV5 Sensors are high-performance photoelectric sensors designed for precision and reliability. Featuring an axial retroreflective design, these sensors offer a nominal sensing distance of 4.5 meters with a thermal drift of 10% Sr and a repeat accuracy of 5%. The sensitivity adjustment is facilitated through a convenient teach-in function, and the sensors operate on a polarized function principle. They are equipped with a PNP NO+NC output type, providing both normally open and normally closed output functions. With a switching frequency of 500Hz and a rapid response time of 1ms, these sensors ensure quick and accurate detection. They operate within a voltage range of 10 to 30VDC, with a no-load supply current of ? 35mA and a load current of ?100mA. The output voltage drop is minimal at ?2V when the load current is 100mA, and the sensors feature a maximum ripple content of ?10%. The FFRN/BP-1EV5 Sensors are built with robust stainless steel AISI 316L housing and a PA12 plug, ensuring durability and resistance to harsh environments. The active head is made of PMMA, and the sensors have a diameter of Ø 17.5mm. They are designed to withstand shocks and vibrations as per IEC standards and offer mechanical protection rated at IP68 and IP69K. These sensors are equipped with LED indicators for green stability and yellow output state, and they feature short-circuit and reverse polarity protection. They are capable of handling interference from external light sources up to 5,000 lux from incandescent lamps and 10,000 lux from sunlight. The sensors are approved by CE, cULus, and ECOLAB Diversey, and they comply with EMC compatibility standards EN 60947-5-2. Operating efficiently in temperatures ranging from -25°C to +80°C, the Datasensing FFRN/BP-1EV5 Sensors are ideal for a wide range of industrial applications.
