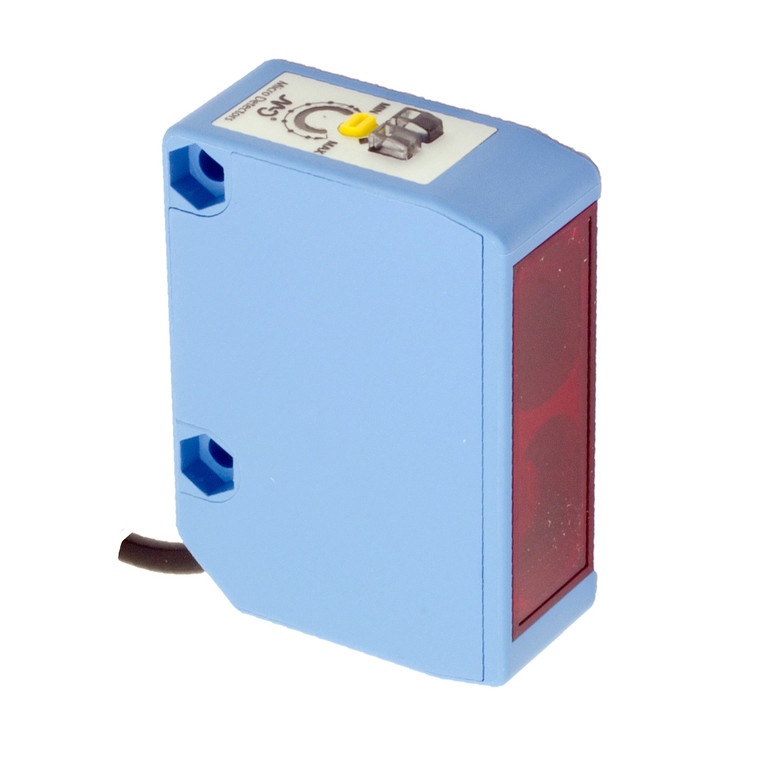

Datasensing FGRN/0N-0A Sensors
Datasensing
$203.63
The Datasensing FGRN/0N-0A Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a cubic design, these sensors offer a polarized function with adjustable sensitivity, allowing for a nominal sensing distance of up to 12 meters. The sensors are equipped with a 2-meter PVC cable for easy installation and connectivity. They provide selectable LO/DO output status and are protected against electrical damages, ensuring durability and longevity.
With a maximum detecting range of 50 meters, these sensors include background suppression models with ranges of 310 mm and 600 mm. The reflex polarized sensitivity adjustment extends up to 12 meters, and the sensors come with an emitter and receiver for optimal performance. The double multifunction LED indicator provides clear output state and usage pointing, enhancing user experience.
The sensors operate on a voltage range of 10 to 30VDC, with a no-load supply current of ? 35mA and a load current of ?100mA. They feature short-circuit and reverse polarity protection, ensuring safe operation. The sensors are housed in durable ABS material with an IP67 degree of protection, making them suitable for various industrial environments. They are CE and UR approved, with EMC compatibility according to EN 60947-5-2 standards.
Supplied with a mounting bracket and RL 123 reflector, these sensors are designed for easy integration into existing systems. Their compact dimensions of 20x44.9x60mm and lightweight design of 150g make them versatile for different applications. Operating efficiently in temperatures ranging from -25°C to +55°C, the Datasensing FGRN/0N-0A Sensors are an ideal choice for reliable and accurate sensing solutions.
- Nominal sensing distance:
- 12m
- Sensitivity adjustment:
- Potentiometer 2 turns with position indicator
- Function Principle:
- Polarized
- Notes:
- On RL123 reflector included
- Optic position:
- Axial
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Output voltage drop:
- ?1,8V@Iload=100mA
- Max ripple content:
- 5Vpp
- LED indicators:
- Green (powerON) Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red
- Interference to external light:
- 3,000Lux (incandescent lamp), 10,000 (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 150g
- Housing Material:
- ABS
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Operating temperature:
- -25°C +55°C
- Diameter/Dimension:
- Cubic
- Approvals:
- CE UR
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
- Degree of protection:
- IP67
- Supplied Accessories:
- Mounting bracket STFG 00 and reflector RL 123
- Operating Temperature:
- - 25°C + 55°C (Without freeze)
- Mechanical Protection:
- IP67
