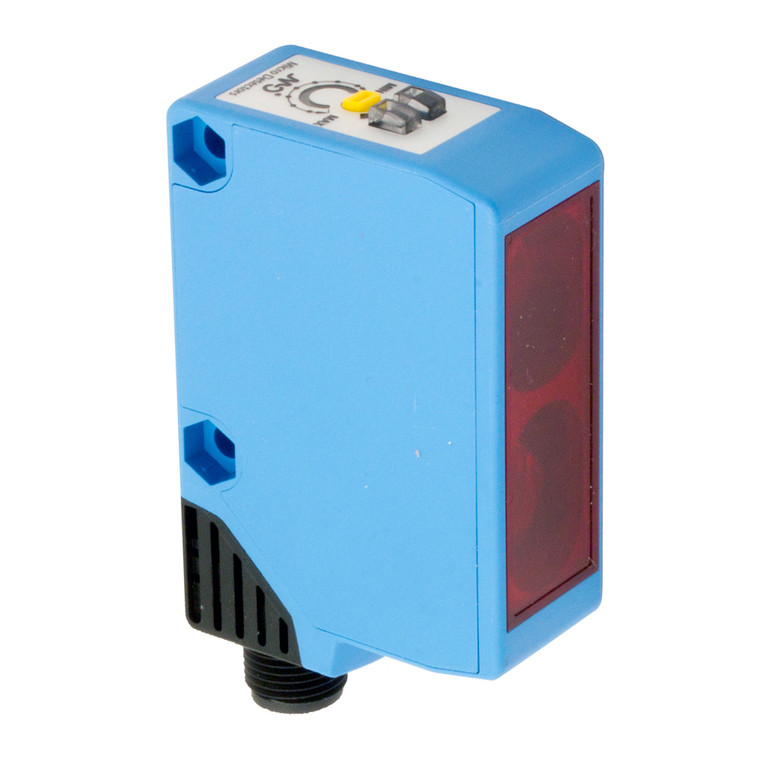

Datasensing FGRN/0P-0E Sensors

The Datasensing FGRN/0P-0E Sensors are designed for precision and reliability in various industrial applications. These sensors feature a cable output or a revolving connector, with options for NPN or PNP output in DC models and SPDT voltage-free relay output in AC models. They offer selectable LO/DO output status and are fully protected against electrical damages, ensuring durability and longevity. The sensors come with background suppression models with ranges of 310 mm and 600 mm, and reflex polarized sensitivity adjustment up to 12 meters. They include an emitter and receiver with a maximum detecting range of 50 meters. The double multifunction LED indicator provides clear output state and usage pointing, while the sensitive adjustment models allow for precise control. Key specifications include a nominal sensing distance of 12 meters, a sensitivity adjustment potentiometer with 2 turns and a position indicator, and a polarized function principle. The sensors are equipped with short-circuit and reverse polarity protection, and they can withstand interference from external light sources up to 10,000 Lux. They operate within a voltage range of 10 to 30 VDC, with a no-load supply current of ? 35mA and a load current of ?100mA. Constructed with a robust ABS housing and PMMA active head material, these sensors are designed to withstand harsh environments with an operating temperature range of -25°C to +55°C and an IP67 degree of protection. They are supplied with a mounting bracket and reflector, ensuring easy installation and setup. With CE and UR approvals and EMC compatibility, the Datasensing FGRN/0P-0E Sensors are a reliable choice for your sensing needs.
