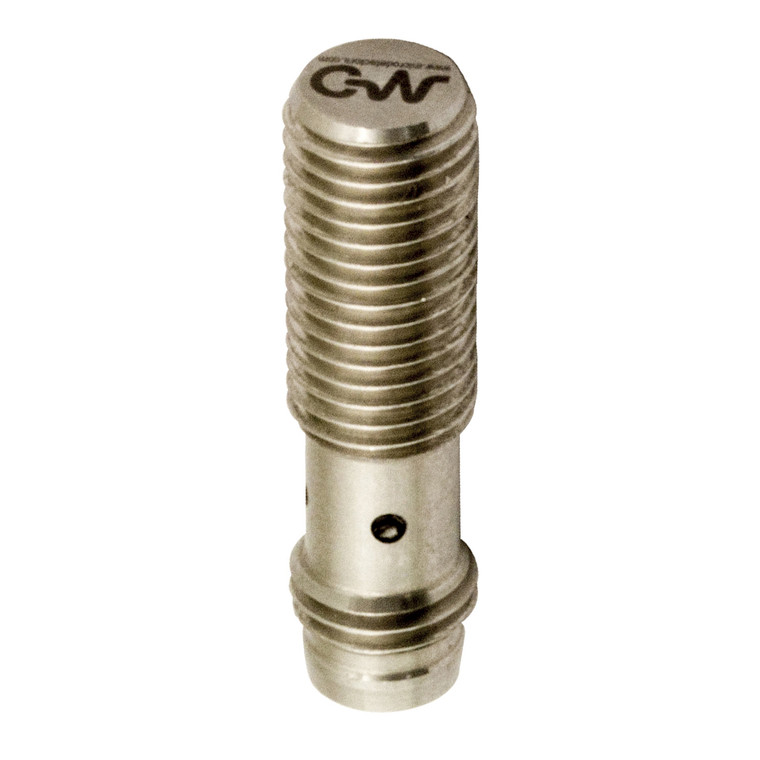

Datasensing FME1/AP-3F Sensors
Datasensing
$109.96
The Datasensing FME1/AP-3F Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a full metal M8 construction, these sensors offer a nominal sensing distance of 2mm and an operating distance of 0 to 1.62mm, making them ideal for proximity detection in various industrial applications. The sensors are equipped with a PNP/NO output type and an M8 plug exit for easy connectivity.
Built with AISI316L stainless steel, the FME1/AP-3F sensors ensure durability and resistance to harsh environments, with an operating temperature range of -25°C to +70°C. They are shielded for flush mounting and provide excellent protection against short circuits, reverse polarity, impulsive overvoltage, and inductive loads. The sensors boast a high switching frequency of 250Hz and a low no-load supply current of ? 10mA, ensuring efficient performance.
With a degree of protection rated at IP68 and IP69K, these sensors are suitable for use in environments exposed to dust, water, and high-pressure cleaning. The yellow LED indicator provides a clear output state, while the sensors' EMC compatibility with IEC 60947-5-2 ensures reliable operation in electromagnetic environments. Supplied with two M8x1 nuts, the Datasensing FME1/AP-3F Sensors are a robust and versatile solution for your sensing needs.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0 / aluminium: 0 / brass: 0 / stainless steel: 0,3
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M8 standard flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 250Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 4g
- Housing Material:
- AISI316L Stainless Steel
- Connections:
- M8 Plug
- Active Head Material:
- stainless steel AISI316L
- Tightening torque:
- 5Nm
- Material:
- AISI316L Stainless Steel
- 0,25mm:
- 0,25mm
- Diameter/Dimension:
- M8
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP68, IP69K
- IK05:
- IK05
- 80bar:
- 80bar
- Supplied Accessories:
- 2 nuts M8x1
- Mechanical Protection:
- IP68 / IP69K
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
