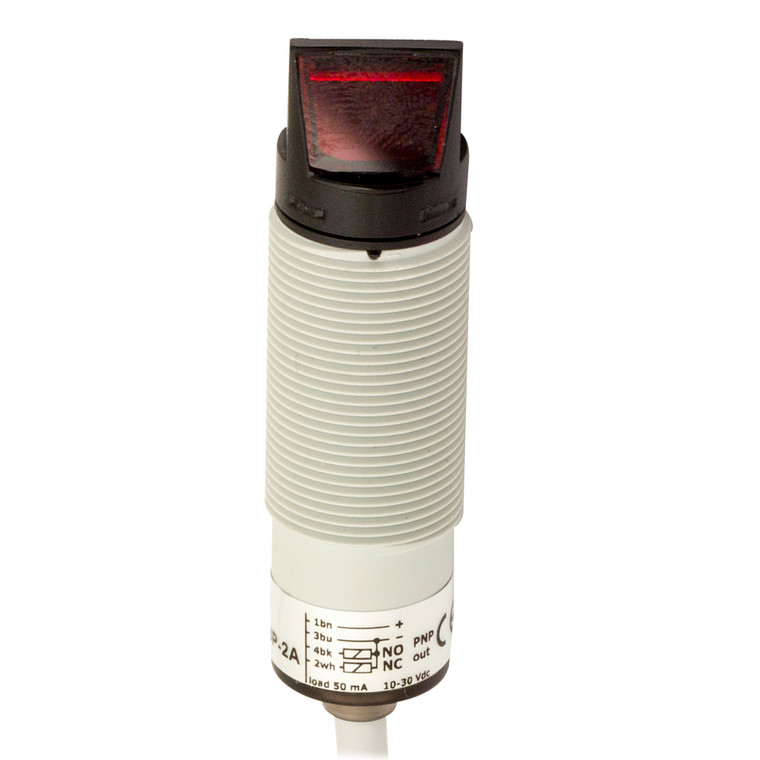

Datasensing FQIC/BP-2A Sensors
Datasensing
$96.45
The Datasensing FQIC/BP-2A Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a 90° retroreflective function with a nominal sensing distance of 4.5 meters, these sensors are ideal for a variety of applications. The robust design includes a plastic housing with a P67 protection degree, ensuring complete protection against electrical damages and environmental factors. The sensors offer a PNP NO+NC output type, with a complementary output function for versatile use.
With a high switching frequency of 250Hz and a rapid response time of 2ms, these sensors are engineered for efficiency. They operate within a voltage range of 10 to 30VDC, with minimal power consumption and a low output voltage drop. The sensors are equipped with LED indicators for easy status monitoring and feature comprehensive protection mechanisms, including short-circuit, overvoltage, and reverse polarity protection.
The FQIC/BP-2A Sensors are built to withstand harsh conditions, with an operating temperature range of -25°C to +70°C and resistance to shocks and vibrations as per IEC standards. The compact design, with dimensions of M18 x 1/L=62.2mm and a weight of 50g, makes installation straightforward. Supplied with M18 x 1 nuts, these sensors are ready for immediate integration into your system. Approved by CE and compliant with EMC standards, the Datasensing FQIC/BP-2A Sensors are a reliable choice for your sensing needs.
- Nominal sensing distance:
- 4,5m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Retroreflex
- Notes:
- On RL110 reflector
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?50mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=50mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 50g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (senza withdensa)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
