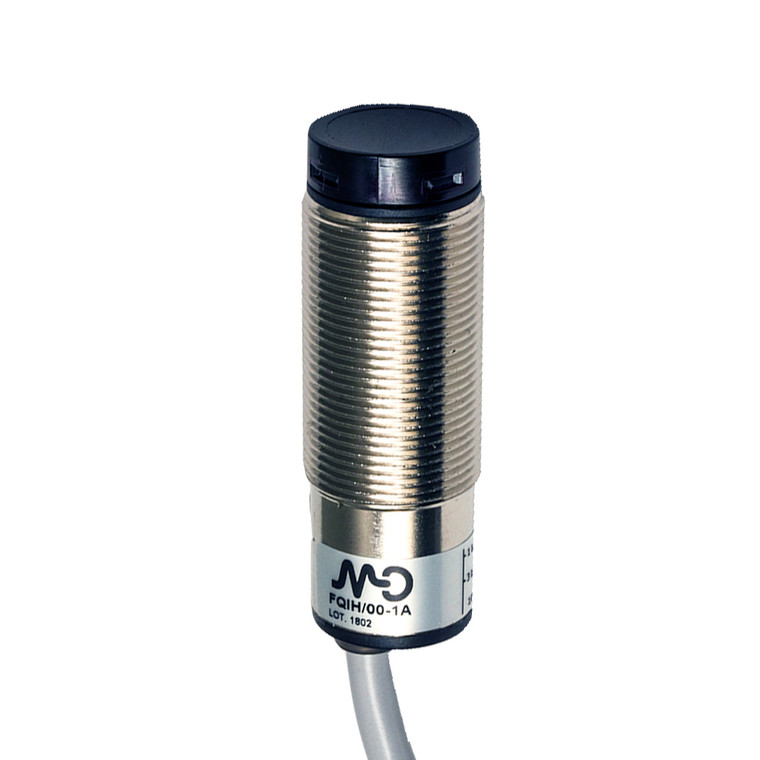

Datasensing FQIH/00-1A Sensors
Datasensing
$71.61
The Datasensing FQIH/00-1A Sensors are advanced photoelectric sensors designed for precision and reliability in various industrial applications. Featuring an axial emitter with a nominal sensing distance of 20 meters, these sensors are equipped with a robust 2-meter PVC cable for easy installation. The sensors offer a wide range of models, including direct diffuse, retro-reflective, polarized, and fixed-focus options, catering to diverse sensing needs. Constructed with durable nickel-plated brass or plastic housing, they ensure long-lasting performance and are rated with an IP67 protection degree for complete protection against electrical damages.
These sensors operate on a voltage range of 10 to 30VDC, with a no-load supply current of ? 25mA and a maximum ripple content of ?10%. They feature a yellow LED indicator for power-on status and have a time delay before availability of ?200ms. The sensors are equipped with reverse polarity protection and emit LED infrared light at 880nm. With a repeat accuracy of 5% and a thermal drift of Sr ?10% Sr, they provide consistent and reliable performance.
The FQIH/00-1A Sensors are designed to withstand harsh environments, with an operating temperature range of -25°C to +70°C and compliance with EMC compatibility standards EN 60947-5-2. They are also resistant to shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. Supplied with M18 x 1 nuts and a screwdriver, these sensors are easy to install and maintain, making them an ideal choice for industrial automation and control systems.
- Nominal sensing distance:
- 20m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Emitter
- Emitter/Receiver:
- Emitter
- Optic position:
- Axial
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (powerON)
- Time delay before availability:
- ?200ms
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
