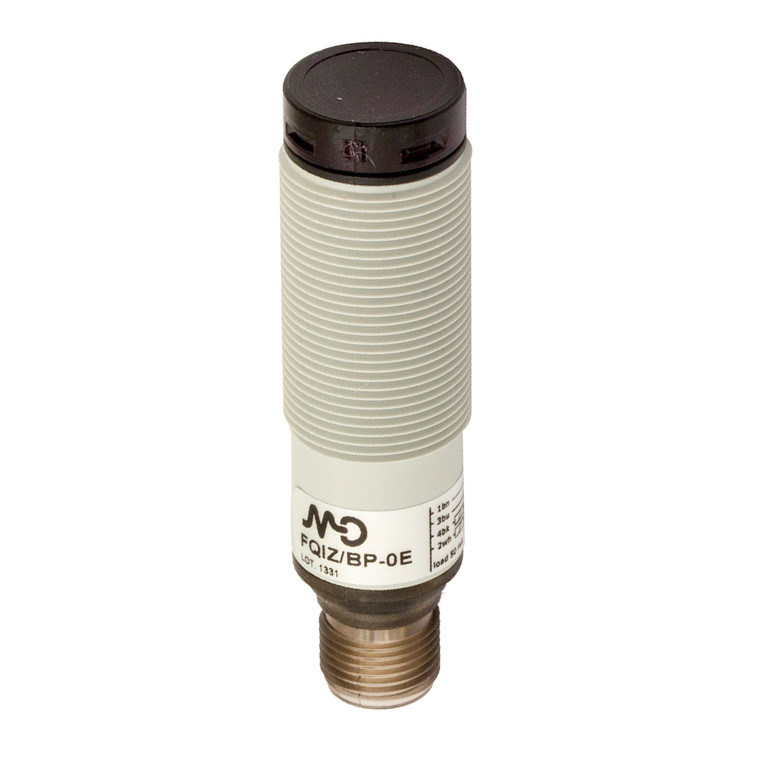

Datasensing FQIZ/BP-0E Sensors
Datasensing
$70.55
The Datasensing FQIZ/BP-0E Sensors are high-performance photoelectric sensors designed for precision and reliability. Featuring an M18 axial receiver with a nominal sensing distance of 20 meters, these sensors are equipped with PNP NO+NC output functions, ensuring versatile application capabilities. The robust construction includes a plastic housing with an IP67 protection degree, offering complete protection against electrical damages and environmental factors. With a switching frequency of 250Hz and a response time of just 2ms, these sensors provide rapid and accurate detection. The M12 plug connection ensures easy installation, while the yellow LED indicator provides clear status output. Designed to withstand operating temperatures from -25°C to +70°C, the FQIZ/BP-0E Sensors are ideal for various industrial environments. CE approved and EMC compatible, these sensors are built to meet rigorous standards, ensuring reliable performance in demanding conditions.
- Nominal sensing distance:
- 20m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?50mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=50mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
