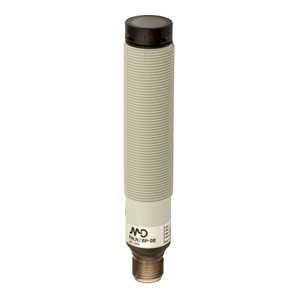

Datasensing FQRN/BN-0E Sensors
Datasensing
$107.78
The Datasensing FQRN/BN-0E Sensors are advanced photoelectric sensors designed for precision and reliability in various industrial applications. Featuring an axial polarized function, these sensors offer a nominal sensing distance of 4.5 meters with a thermal drift of ?10% Sr, ensuring consistent performance. The sensors are equipped with a trimmer for sensitivity adjustment and provide both NPN NO and NC output functions, making them versatile for different operational needs.
Constructed with a robust PBT/PC housing and a PMMA active head, the FQRN/BN-0E sensors are built to withstand harsh environments, boasting an IP67 protection degree. They are resistant to electrical damages, thanks to comprehensive short-circuit, overvoltage, and reverse polarity protections. The sensors operate efficiently within a voltage range of 10 to 30VDC, with a low no-load supply current of ?30mA and a load current of ?50mA.
With a high switching frequency of 250Hz and a rapid response time of 2ms, these sensors are ideal for fast-paced industrial settings. The LED indicators provide clear status output, while the sensors maintain high interference resistance to external light sources, including 5000lux from incandescent lamps and 10000lux from sunlight.
The compact design, with dimensions of M18 x 1 /L =66.3mm and a weight of just 20g, allows for easy integration into existing systems. The sensors come with supplied accessories, including M18 x 1 nuts and a screwdriver, facilitating straightforward installation. Approved by CE and compliant with EMC compatibility standards EN 60947-5-2, the Datasensing FQRN/BN-0E Sensors are a reliable choice for enhancing operational efficiency and accuracy in demanding environments.
- Nominal sensing distance:
- 4,5m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?50mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=50mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- inversione di polarità,, sovratensioni impulsive
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 20g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (senza withdensa)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
