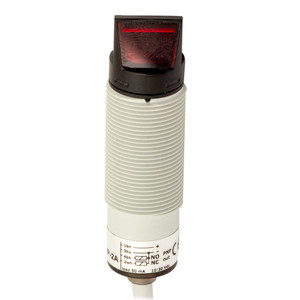

The Datasensing FQRN/BP-3E Sensors are advanced photoelectric sensors designed for precision and reliability in various industrial applications. Featuring a polarized function principle, these sensors offer a nominal sensing distance of 2.6 meters, with a thermal drift of Sr at ?10% Sr and a repeat accuracy of 5%. The sensitivity can be easily adjusted using a trimmer, ensuring optimal performance tailored to your needs.
Constructed with a robust nickel-plated brass housing and a PC plug, the FQRN/BP-3E Sensors are built to withstand harsh environments, boasting an IP67 protection degree for complete protection against dust and water ingress. The sensors are equipped with a PNP NO+NC output type, providing both normally open and normally closed complementary outputs for versatile integration into existing systems.
With a switching frequency of 250Hz and a rapid response time of 2ms, these sensors ensure quick and accurate detection. They operate efficiently within a voltage range of 10 to 30VDC, with a no-load supply current of ?30mA and a load current of ?50mA. The sensors also feature short-circuit protection with an auto-reset function, overvoltage protection, and reverse polarity protection, ensuring durability and longevity.
The FQRN/BP-3E Sensors are equipped with LED indicators for easy status monitoring and are designed to resist interference from external light sources, withstanding up to 5000 lux from incandescent lamps and 10000 lux from sunlight. Supplied with M18 x 1 nuts and a screwdriver, these sensors are easy to install and maintain, making them an ideal choice for demanding industrial environments. Approved by CE and compliant with EMC compatibility standards, the Datasensing FQRN/BP-3E Sensors deliver reliable performance and peace of mind.
- Nominal sensing distance:
- 2,6m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?50mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=50mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 40g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
