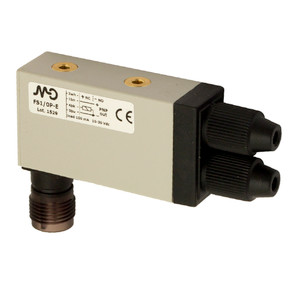

Datasensing FS1/0N-C Sensors

The Datasensing FS1/0N-C Sensors are compact optical fibre amplifiers designed for precision and reliability in various industrial applications. With dimensions of just 49 x 26 x 15 mm, these units are engineered to fit into tight spaces, featuring a right-angle cable exit or an M12 plug cable to minimize overall dimensions. The sensors offer a trimmer for sensitivity adjustment, allowing for fine-tuning to meet specific needs. They support both NPN and PNP outputs with selectable NO/NC functions, providing flexibility in integration. The FS1/0N-C Sensors utilize a red light beam with a visible spot, compatible with a wide range of optical fibres, including both plastic and glass types. They are equipped with comprehensive protection against electrical damage, including short-circuit and reverse polarity protection, ensuring durability and longevity. The sensors are designed for easy installation with M4 screws and come with a mounting bracket and screws for convenience. Operating within a voltage range of 10 to 30VDC, these sensors have a nominal sensing distance that varies depending on the optical fibres used. They exhibit a thermal drift of Sr ? 10% and a repeat accuracy of ? 5%. The sensors feature a high switching frequency of 1kHz and a rapid response time of 500µs, making them suitable for fast-paced environments. With an IP67 degree of protection, they are resistant to dust and water, and can operate in temperatures ranging from -25°C to +70°C without freezing. The FS1/0N-C Sensors are CE approved and comply with EMC compatibility standards EN 60947-5-2. They are built to withstand shocks and vibrations as per IEC standards, ensuring reliable performance in demanding conditions. The housing is made of durable polyamide, and the sensors are equipped with LED indicators to display the output state. With a no-load supply current of ? 30mA and a load current of ? 100mA, these sensors are energy-efficient and effective for various sensing applications.
