Datasensing FS1/0P-C Sensors
Datasensing
$133.14

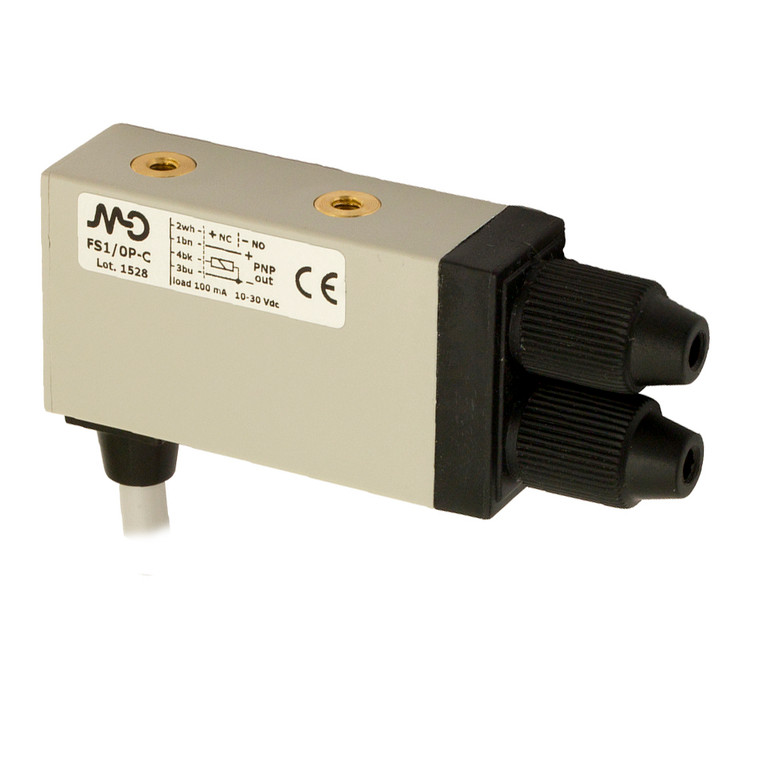

Datasensing FS1/0P-C Sensors - Compact Optical Fibre Amplifier with PNP NO/NC Output
The Datasensing FS1/0P-C Sensors are designed for precision and efficiency in optical fibre amplification. With extremely compact dimensions of 49 x 26 x 15 mm, these units are perfect for applications where space is limited. The right-angle cable exit or M12 plug cable minimizes overall dimensions, while the trimmer allows for easy sensitivity adjustment. Featuring NPN or PNP outputs with selectable NO/NC, these sensors provide flexibility for various applications. The red light beam with a visible spot ensures accurate detection, and the wide range of compatible optical fibres, both plastic and glass, enhances versatility.
Built to withstand challenging environments, the FS1/0P-C Sensors offer complete protection against electrical damage, including short-circuit and reverse polarity protection. The robust polyamide housing and IP67 mechanical protection ensure durability, while the sensors operate efficiently within a temperature range of -25°C to +70°C. With a high switching frequency of 1kHz and a response time of 500µs, these sensors deliver fast and reliable performance. The included ST07 mounting bracket and screws facilitate easy installation, making the Datasensing FS1/0P-C Sensors an ideal choice for precise optical fibre amplification needs.
- Nominal sensing distance:
- Depending on optical fibres used
- Thermal drift of Sr:
- ? 10% Sr
- Repeat Accuracy:
- ? 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Optic fiber amplifier
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ? 10?A @ Vmax
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- red (output state)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 120 g
- Housing Material:
- Polyammide
- Connections:
- 2m PVC cable 90°
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- ST07 mounting bracket and screws
- Mechanical Protection:
- IP67
