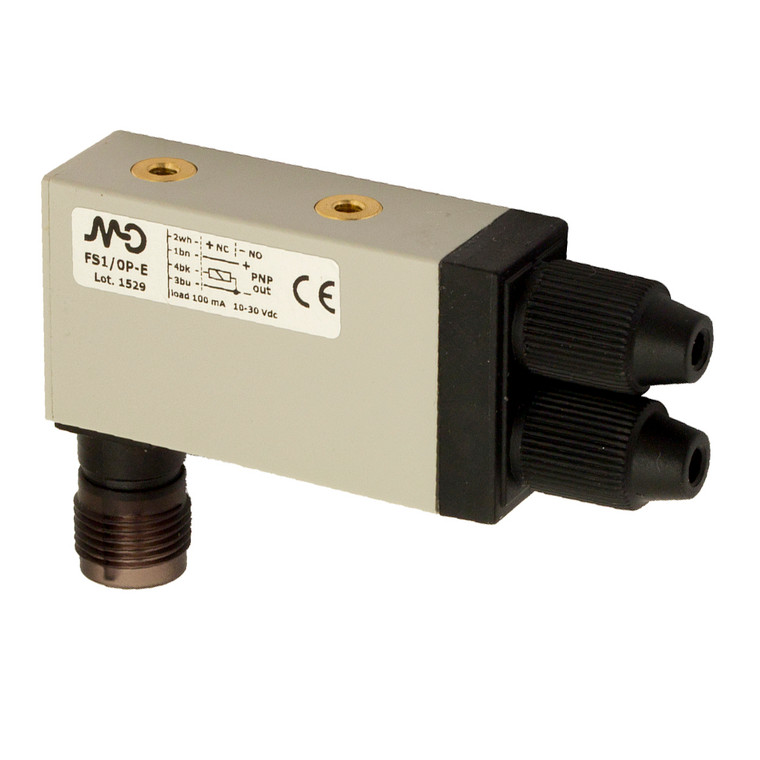

Datasensing FS1/0P-E Sensors

The Datasensing FS1/0P-E Sensors are compact optical fibre amplifiers designed for precision and reliability in various industrial applications. With dimensions of just 49 x 26 x 15 mm, these units are engineered to fit into tight spaces, featuring a right-angle cable exit or M12 plug cable to minimize overall dimensions. The amplifier offers a trimmer for sensitivity adjustment, allowing for fine-tuning to meet specific needs. It supports both NPN and PNP outputs with selectable NO/NC functions, providing flexibility in integration. The FS1/0P-E utilizes a red light beam with a visible spot, compatible with a wide range of optical fibres, including both plastic and glass types. It is equipped with comprehensive protection against electrical damage, ensuring durability and longevity. The unit is easily mounted using M4 screws with a 20 mm step. Key specifications include a nominal sensing distance that varies depending on the optical fibres used, a thermal drift of Sr ? 10% Sr, and a repeat accuracy of ? 5%. The amplifier operates on a voltage range of 10…30VDC, with a no-load supply current of ? 30mA and a load current of ?100mA. It features a switching frequency of 1kHz and a response time of 500µs, making it suitable for high-speed applications. The FS1/0P-E is built with a polyamide housing, offering IP67 mechanical protection, and is designed to withstand operating temperatures from -25°C to +70°C. It includes short-circuit and reverse polarity protection, ensuring safe operation. The unit is CE approved and EMC compatible with EN 60947-5-2 standards, and it comes with a ST07 mounting bracket and screws for easy installation.
