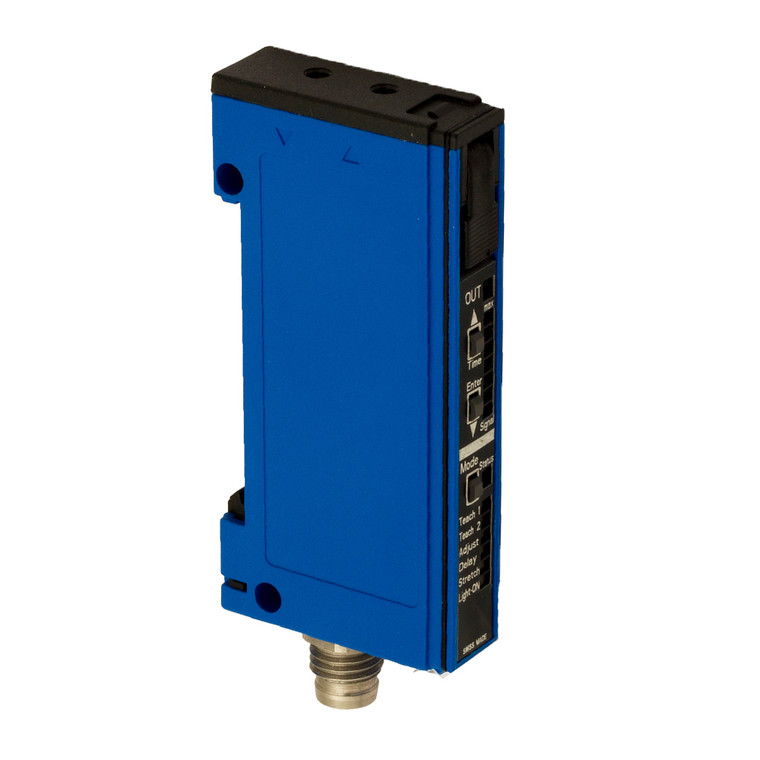

The Datasensing FX4/0P-0A Sensors are advanced optical fibre amplifiers designed for precise and reliable performance. These sensors are ideal for DIN-rail mounting, conforming to DIN/EN 50022 standards, and feature a compact 10 mm housing width, making them perfect for stacking in tight spaces. The FX4 model offers a large setting range of 20 to 200 mm, with distance settings adjustable via teach-in methods and additional manual fine-tuning.
Equipped with a high switching frequency of 1.5 kHz, these sensors ensure rapid response times of 333µs, making them suitable for high-speed applications. The PNP output type is light/dark selectable, providing flexibility in various operational environments. The sensors are protected against short-circuits and reverse polarity, ensuring durability and reliability.
The FX4/0P-0A Sensors come with a 2m PVC cable for easy installation and feature LED indicators for output activity and signal level monitoring. They are designed to withstand harsh conditions, with an operating temperature range of -25°C to +55°C and an IP64 degree of protection. The sensors are CE approved and EMC compatible with EN 60947-5-2 standards, ensuring compliance with industry regulations. Supplied with a DIN mounting bracket, these sensors are ready for immediate integration into your system.
- Nominal sensing distance:
- Depending on optical fibres used
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Optic fiber amplifier
- Notes:
- Delay ON/OFF One Shot
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- ? 1,5Khz
- Response time:
- 333µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?200mA
- Leakage current:
- ? 0,1mA
- Output voltage drop:
- ?2V@Iload=200mA
- Max ripple content:
- ?10%
- LED indicators:
- Orange (output active)
- Time delay before availability:
- ?200ms
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5.000lux (incandescent lamp), 10.000lux (sunlight)
- Housing Material:
- PBTP
- Connections:
- 2m PVC cable
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP64
- Supplied Accessories:
- DIN mounting bracket
- Dimensions:
- 80 x 31,1 x 10 mm
- Operating Temperature:
- - 25°C + 55°C (Without freeze)
- Mechanical Protection:
- IP64
