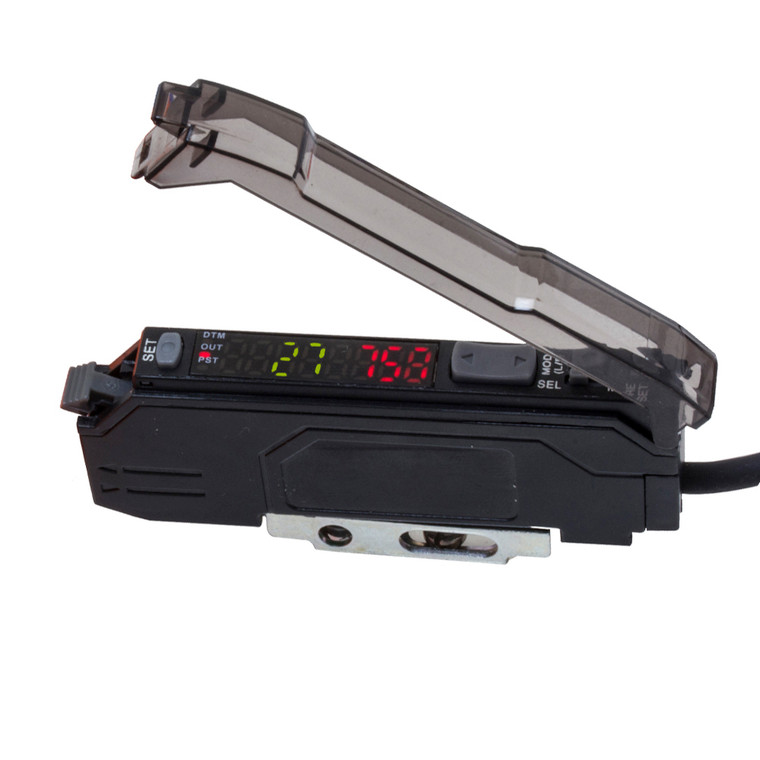

Datasensing FY3/0N-0V Sensors

The Datasensing FY3/0N-0V Sensors are advanced fibre amplifiers designed for precision and reliability in optical sensing applications. Featuring a compact cubic design with dimensions of 71.8 x 30.3 x 9.8 mm, these sensors are equipped with a robust PC housing and offer IP64 mechanical protection, ensuring durability in various environments. The sensors operate on a 12 to 24VDC power supply, with a no-load supply current of ? 40mA and a load current of ?100mA, making them energy-efficient. These sensors boast a high switching frequency of 1kHz and selectable response times ranging from 100µs to 8ms, catering to different speed requirements. The NPN output type is L/D selectable, providing flexibility in output functions. The sensors are equipped with LED indicators for output state and signal level, ensuring easy monitoring and adjustments. With a nominal sensing distance that varies depending on the optical fibres used, the sensors offer a repeat accuracy of ? 5% and a teach-in sensitivity adjustment for precise operation. They are designed to withstand interference from external light sources up to 20,000 lux (incandescent lamp) and 30,000 lux (sunlight), ensuring reliable performance in diverse lighting conditions. The sensors come with a 150mm PVC cable and an M8 plug 4-pin connection, along with a DIN mounting bracket for easy installation. They are CE approved and comply with EMC compatibility standards EN 60947-5-2, making them a reliable choice for industrial applications. With features like short-circuit and reverse polarity protection, these sensors are built for safety and longevity. Operating efficiently in temperatures ranging from -20°C to +55°C, the Datasensing FY3/0N-0V Sensors are ideal for a wide range of industrial and automation applications.
