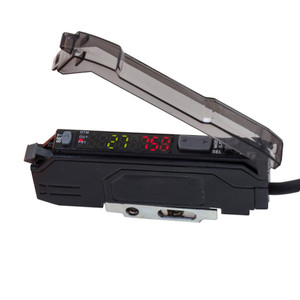

The Datasensing FY3/0P-0A Sensors are advanced fibre amplifiers designed for precision and reliability. Featuring a PNP anti-interference system, these sensors are equipped with a teach-in sensitivity adjustment and a selectable L/D output function. The optic fiber amplifier operates on a 12-24VDC power supply, with a no-load supply current of ? 40mA and a load current of ?100mA. It boasts a high switching frequency of 1kHz and a response time ranging from 100µs to 8ms, depending on the selected mode (HIGH SPEED, FINE, SUPER, MEGA).
The device is housed in a compact cubic design with dimensions of 71.8 x 30.3 x 9.8 mm and weighs approximately 80 grams. It is constructed from durable PC material and offers IP64 mechanical protection, ensuring resilience in various environments. The sensor is equipped with LED indicators for output state and signal level, providing clear visual feedback. It also includes short-circuit and reverse polarity protection, enhancing its operational safety.
The FY3/0P-0A is compatible with a wide range of optical fibres, offering a nominal sensing distance that varies accordingly. It is designed to withstand interference from external light sources up to 20,000 lux (incandescent lamp) and 30,000 lux (sunlight). The sensor is CE approved and meets EMC compatibility standards (EN 60947-5-2), making it a reliable choice for industrial applications. Supplied with a DIN mounting bracket, it is easy to install and integrate into existing systems. Operating efficiently in temperatures from -20°C to +55°C, this sensor is ideal for use in diverse conditions.
- Nominal sensing distance:
- Depending on optical fibres used
- Repeat Accuracy:
- ? 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Optic fiber amplifier
- Notes:
- Delay ON/OFF One Shot Anti mutual interference
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- OFF: 100µs(HIGH SPEED) 250 µs (FINE) 1ms (SUPER) 8ms(MEGA)
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Leakage current:
- ? 10µA
- Output voltage drop:
- ?1V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (output state) Red (Signal level -4 digits) Green (Threshold - 4 digits)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (680nm)
- Interference to external light:
- 20.000lux (incandescent lamp), 30.000lux (sunlight)
- Weight:
- 80 g (approx.)
- Housing Material:
- PC
- Connections:
- 2m PVC cable
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP64
- Supplied Accessories:
- DIN mounting bracket
- Mechanical Protection:
- IP64
