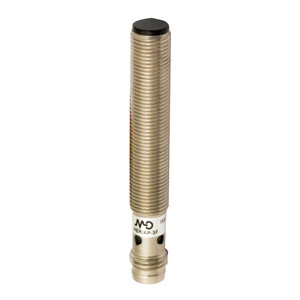

Datasensing HER/CN-3F Sensors
Datasensing
$146.64
The Datasensing HER/CN-3F Sensors are high-performance photoelectric sensor receivers designed for precision and reliability. Featuring an M8 through beam model, these sensors boast a high switching frequency of 10Khz, ensuring rapid response times of just 50 µs. The robust stainless steel housing provides complete protection against electrical damages and is rated IP67 for superior resistance to dust and water ingress. With a nominal sensing distance of 1 meter, these sensors are equipped with LED status indicators for easy monitoring. They operate on a supply voltage range of 10 to 30 VDC and are designed with NPN NC output type, offering a maximum load current of 100mA. The sensors are engineered to withstand harsh environments, with an operating temperature range of -25°C to +70°C and protection against short-circuits, reverse polarity, and impulsive overvoltage. The compact design, with dimensions of M8x0.75/L=49mm, and a lightweight of 15g, makes them ideal for various industrial applications. Approved by CE and compliant with EMC standards, these sensors ensure reliable performance even in challenging conditions.
- Nominal sensing distance:
- 1m
- Thermal drift of Sr:
- ?10%Sr
- Repeat Accuracy:
- ?10%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- NPN NC
- Output Function:
- NC
- Switching frequency:
- 10Khz
- Response time:
- 50 µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ?45mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000 lux (incandescent lamp), 5.000 lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- M8x0,75/L=49mm
- Weight:
- 15g
- Housing Material:
- Stainless Steel AISI 303
- Connections:
- M8 plug 3pin
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 50° C (without freeze)
- Diameter/Dimension:
- M8
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M8 x 0,75
- Dimensions:
- M8x0,75/L=54mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
