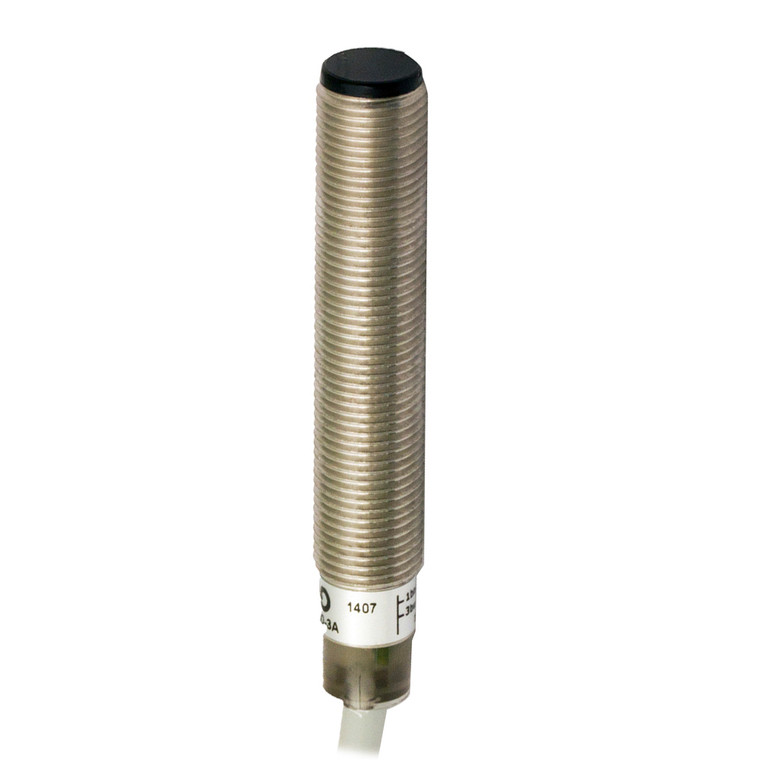

Datasensing HER/CN-4A Sensors
Datasensing
$143.05
The Datasensing HER/CN-4A Sensors are high-performance photoelectric sensor receivers designed for precision and reliability. Featuring an M8 through beam model, these sensors boast a high switching frequency of 1Khz, ensuring rapid response times of just 500µs. The robust stainless steel housing provides complete protection against electrical damages and is rated IP67 for superior resistance to dust and water ingress.
With a nominal sensing distance of 2 meters, these sensors are equipped with a yellow LED status indicator for easy monitoring. They operate on a supply voltage range of 10 to 30 VDC and are designed with NPN NC output type, offering a maximum load current of 100mA. The sensors are engineered to withstand thermal drift of ?10%Sr and maintain repeat accuracy of ?10%, ensuring consistent performance in varying conditions.
The HER/CN-4A Sensors are built with advanced features such as short-circuit and reverse polarity protection, impulsive overvoltage protection, and are capable of handling interference from external light sources up to 5,000 lux. The sensors are CE approved and comply with EMC compatibility standards EN 60947-5-2, making them suitable for a wide range of industrial applications.
With a compact design measuring M8x0,75/L=49mm and a lightweight of 40g, these sensors are easy to install and integrate into existing systems. The 2-meter PVC cable connection ensures flexibility and ease of use, while the durable PMMA active head material guarantees long-lasting performance. Ideal for environments with operating temperatures ranging from -25°C to +70°C, the Datasensing HER/CN-4A Sensors are the perfect choice for reliable and efficient sensing solutions.
- Nominal sensing distance:
- 2m
- Thermal drift of Sr:
- ?10%Sr
- Repeat Accuracy:
- ?10%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Notes:
- (EG=2)
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- NPN NC
- Output Function:
- NC
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ?45mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000 lux (incandescent lamp), 5.000 lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 40g
- Housing Material:
- Stainless Stee AISI 303l / PA12 cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 50° C (without freeze)
- Diameter/Dimension:
- M8
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M8 x 0,75
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
