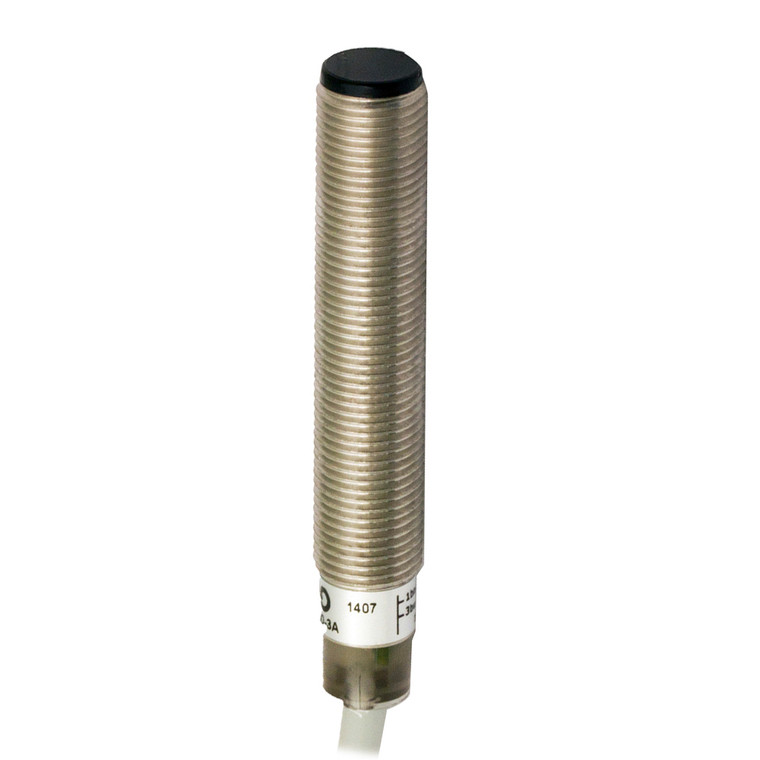

Datasensing HER/CP-3A Sensors
Datasensing
$143.05
The Datasensing HER/CP-3A Sensors are high-performance photoelectric sensor receivers designed for precision and reliability. Featuring an M8 through beam model, these sensors boast a high switching frequency of 10Khz, ensuring rapid response times of just 50 µs. With a nominal sensing distance of 1 meter, they are perfect for applications requiring accurate detection.
Constructed with a robust stainless steel housing, these sensors offer complete protection against electrical damages and are rated IP67 for superior resistance to dust and water ingress. The LED status indicator provides clear operational feedback, while the sensor's design includes comprehensive short-circuit and reverse polarity protection.
Operating within a supply voltage range of 10 to 30 VDC, the HER/CP-3A sensors maintain a low no-load supply current of ?45mA and a load current of ?100mA. The output type is PNP NC, with a minimal output voltage drop of ?2V at a load current of 100mA. The sensors are equipped to handle external light interference up to 3,000 lux from incandescent lamps and 5,000 lux from sunlight, thanks to their LED infrared emission at 880nm.
The compact dimensions of M8x0.75/L=49mm and a lightweight design of 40g make these sensors easy to integrate into various systems. They come with a 2-meter PVC cable for convenient connectivity and are approved with CE and EMC compatibility standards. Withstanding operating temperatures from -25°C to +70°C, these sensors are built to endure challenging environments without freezing.
Ideal for industrial applications, the Datasensing HER/CP-3A Sensors deliver reliable performance with minimal thermal drift and repeat accuracy, ensuring consistent operation in demanding conditions.
- Nominal sensing distance:
- 1m
- Thermal drift of Sr:
- ?10%Sr
- Repeat Accuracy:
- ?10%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- PNP NC
- Output Function:
- NC
- Switching frequency:
- 10Khz
- Response time:
- 50 µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ?45mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000 lux (incandescent lamp), 5.000 lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 40g
- Housing Material:
- Stainless Stee AISI 303l / PA12 cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 50° C (without freeze)
- Diameter/Dimension:
- M8
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M8 x 0,75
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
