Datasensing IL1/AN-3A Sensors
Datasensing
$53.93

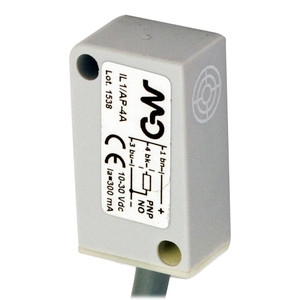

The Datasensing IL1/AN-3A Sensors are designed for precision and reliability in industrial applications. These inductive sensors feature a compact cubic flush mount design with dimensions of 10.3 x 28 x 16 mm, making them ideal for space-constrained environments. With a nominal sensing distance of 3mm and an operating distance of 0 to 2.4mm, they are perfect for detecting standard targets of 12x12mm FE360. The sensors are equipped with a shielded NPN NO output type and a 2m PVC cable for easy installation.
Operating within a supply voltage range of 10 to 30 Vdc, these sensors can handle an output current of up to 300 mA. They are built to withstand harsh conditions, featuring IP67 housing protection and complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. The sensors also offer a high switching frequency of 3kHz and a low no-load supply current of ? 10mA, ensuring efficient performance.
The yellow LED status indicator provides a clear visual of the output state, while the sensors' robust construction ensures durability with a PA housing material and active head. They are designed to operate in temperatures ranging from -25°C to +70°C, making them suitable for various industrial environments. With CE approvals and EMC compatibility according to IEC 60947-5-2, these sensors meet high standards of safety and performance.
- Nominal sensing distance:
- 3mm
- Operanting distance:
- 0 2,4mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,25 / aluminium: 0,28 / brass: 0,37 / stainless steel: 0,63
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 10,3x28x16mm cubic flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 3kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 300mA
- Leakage current:
- ? 0,12mA
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 63g
- Housing Material:
- PA
- Connections:
- 2m PVC Cable
- Active Head Material:
- PA
- Material:
- PA
- Diameter/Dimension:
- 10,3x28x16mm
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
