Datasensing IL1/AP-3A87 Sensors
Datasensing
$61.64

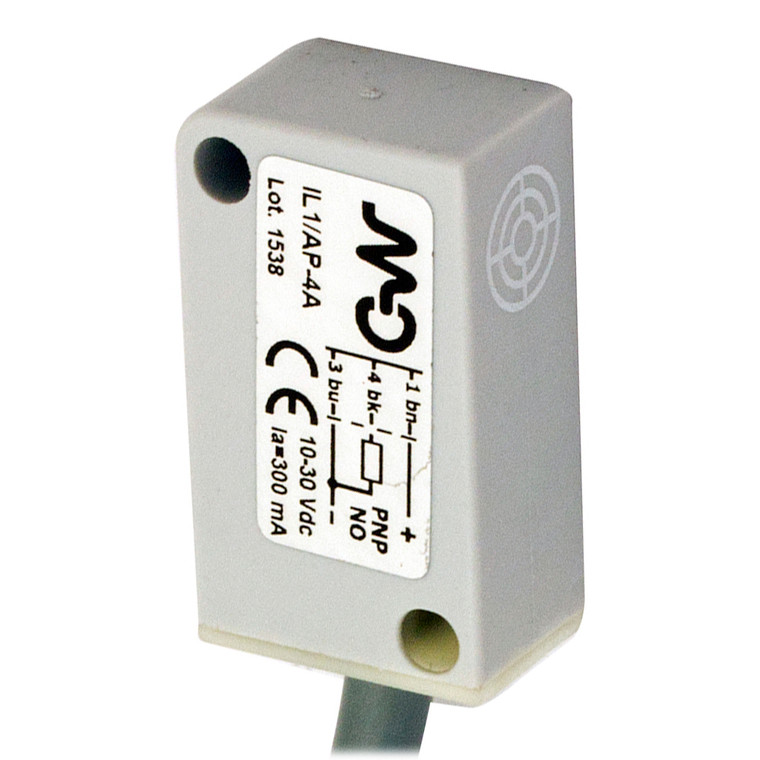

The Datasensing IL1/AP-3A87 Sensors are high-performance inductive sensors designed for precision and reliability. With a compact cubic design measuring 10.3x28x16mm, these sensors are ideal for flush mounting in various industrial applications. They feature a nominal sensing distance of 3mm and an operating distance of 0 to 2.4mm, making them suitable for detecting standard targets of 12x12mm FE360. The sensors are equipped with a PNP NO output function and a 6m PVC cable for easy connectivity.
Engineered for durability, the IL1/AP-3A87 Sensors offer robust protection against short circuits, reverse polarity, impulsive overvoltage, and inductive loads. They operate efficiently within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 300mA. The sensors also feature a yellow LED indicator for output state visibility and a switching frequency of 3kHz.
Built to withstand harsh environments, these sensors are housed in PA material with an IP67 mechanical protection rating, ensuring resistance to dust and water ingress. They are compliant with CE approvals and EMC compatibility standards (IEC 60947-5-2), and are designed to endure shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. Operating effectively in temperatures ranging from -25°C to +70°C, the Datasensing IL1/AP-3A87 Sensors are a reliable choice for demanding industrial settings.
- Nominal sensing distance:
- 3mm
- Operanting distance:
- 0 2,4mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,25 / aluminium: 0,28 / brass: 0,37 / stainless steel: 0,63
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 10,3x28x16mm cubic flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 3kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 300mA
- Leakage current:
- ? 0,12mA
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Housing Material:
- PA
- Connections:
- 7m PVC Cable
- Active Head Material:
- PA
- Material:
- PA
- Diameter/Dimension:
- 10,3x28x16mm
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Dimensions:
- 28 x 16 x 10,3 mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
