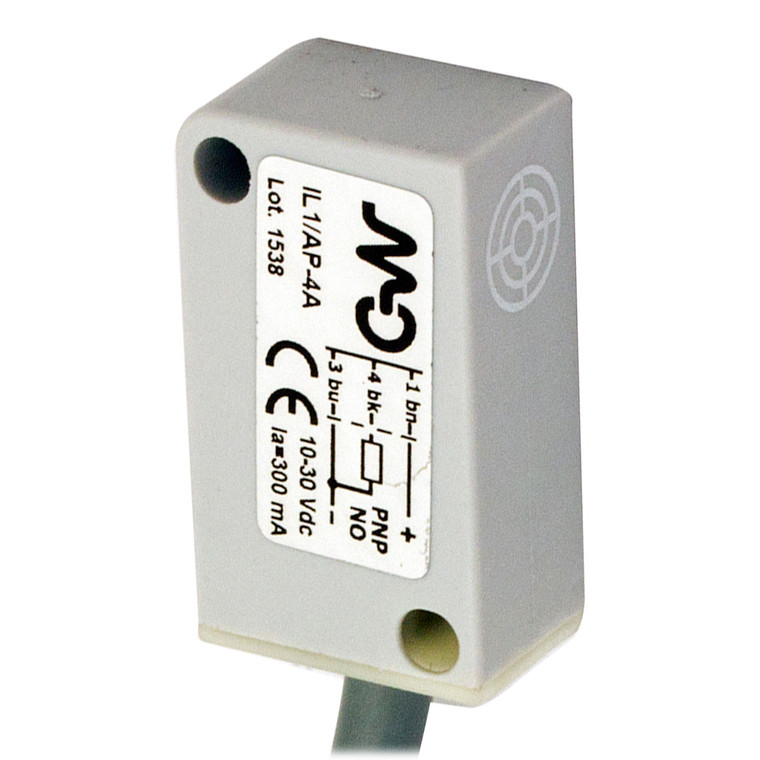

Datasensing IL1/AP-4A Sensors
Datasensing
$53.93
The Datasensing IL1/AP-4A Sensors are designed for precision and reliability in industrial applications. These inductive sensors feature a compact cubic design with dimensions of 10.3 x 28 x 16 mm, making them ideal for space-constrained environments. With a nominal sensing distance of 6mm and an operating distance of 0 to 4.8mm, they are perfect for detecting standard targets of 18x18mm FE360. The sensors offer a PNP NO output type with a switching frequency of 3kHz, ensuring fast and accurate proximity detection.
Built to withstand harsh conditions, the IL1/AP-4A sensors boast an IP67 housing protection, safeguarding against dust and water ingress. They are equipped with a yellow LED status indicator for easy monitoring of the output state. The sensors operate within a supply voltage range of 10 to 30 Vdc and can handle an output current of up to 300 mA. They are engineered with complete protection against electrical damages, including short-circuit, reverse polarity, impulsive overvoltage, and inductive load protection.
The sensors are constructed with durable PA housing and active head material, ensuring longevity and resilience in temperatures ranging from -25°C to +70°C. They come with a 2m PVC cable for convenient connectivity. The IL1/AP-4A sensors are CE approved and comply with EMC compatibility standards IEC 60947-5-2, as well as vibration and shock standards IEC 60068-2-6 and IEC 60068-2-27, respectively. With a weight of 63g, these sensors are lightweight yet robust, making them a reliable choice for various industrial sensing applications.
- Nominal sensing distance:
- 6mm
- Operanting distance:
- 0 4,8mm
- Standard target:
- 18x18mm FE360
- Correction Factor:
- copper: 0,41 / aluminium: 0,50 / brass: 0,55 / stainless steel: 0,75
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 10,3x28x16mm cubic no-flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 3kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 300mA
- Leakage current:
- ? 0,12mA
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 63g
- Housing Material:
- PA
- Connections:
- 2m PVC Cable
- Active Head Material:
- PA
- Material:
- PA
- Diameter/Dimension:
- 10,3x28x16mm
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
