Datasensing IL1/CP-3A Sensors
Datasensing
$53.93

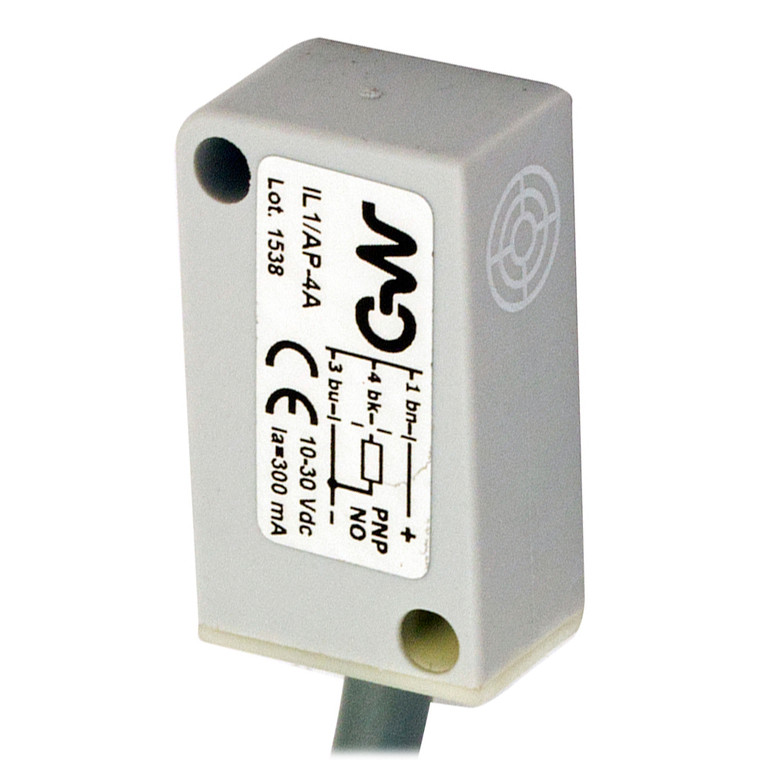

The Datasensing IL1/CP-3A Sensors are designed for precision and reliability in industrial applications. These inductive sensors feature a compact cubic flush mount design with dimensions of 10.3 x 28 x 16 mm, making them ideal for space-constrained environments. They operate with a supply voltage range of 10 to 30 Vdc and can handle an output current of up to 300 mA. The sensors are equipped with a yellow LED status indicator for easy monitoring of the output state.
Built to withstand harsh conditions, the IL1/CP-3A sensors boast an IP67 housing protection, ensuring complete protection against electrical damages, including short-circuit, reverse polarity, impulsive overvoltage, and inductive load protection. The sensors have a nominal sensing distance of 3mm and an operating distance of 0 to 2.4mm, with a standard target size of 12x12mm FE360. They offer a high switching frequency of 3kHz and maintain repeat accuracy of less than 5% under specified conditions.
The sensors are shielded and come with a 2m PVC cable for easy installation. They are designed to operate efficiently in temperatures ranging from -25°C to +70°C. With a robust PA housing and active head material, these sensors are CE approved and comply with EMC compatibility standards IEC 60947-5-2. They are also tested for shocks and vibrations according to IEC 60068-2-6 and IEC 60068-2-27 standards, ensuring durability and reliability in demanding environments.
- Nominal sensing distance:
- 3mm
- Operanting distance:
- 0 2,4mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,25 / aluminium: 0,28 / brass: 0,37 / stainless steel: 0,63
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 10,3x28x16mm cubic flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- 3kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 300mA
- Leakage current:
- ? 0,12mA
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 63g
- Housing Material:
- PA
- Connections:
- 2m PVC Cable
- Active Head Material:
- PA
- Material:
- PA
- Diameter/Dimension:
- 10,3x28x16mm
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
