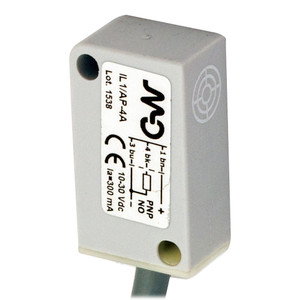

The Datasensing IL1/CP-4A Sensors are high-performance inductive sensors designed for precision and reliability. With compact dimensions of 10 x 28 x 16 mm, these sensors are perfect for applications where space is limited. They operate on a supply voltage of 10 to 30 Vdc and can handle an output current of up to 300 mA. The sensors feature a PNP NC output type and are equipped with a 2-meter PVC cable for easy installation.
The IL1/CP-4A sensors boast a nominal sensing distance of 6mm and an operating distance of 0 to 4.8mm, making them ideal for detecting standard targets of 18x18mm FE360. They offer a high switching frequency of 3kHz and maintain excellent repeat accuracy of less than 5% under specified conditions. The sensors are designed with a yellow LED status indicator for easy monitoring of the output state.
Built to withstand harsh environments, these sensors have an IP67 housing protection, ensuring complete protection against electrical damages, short-circuits, reverse polarity, impulsive overvoltage, and inductive loads. They are also CE approved and comply with EMC compatibility standards IEC 60947-5-2. The sensors can operate in temperatures ranging from -25°C to +70°C and are resistant to shocks and vibrations as per IEC standards.
The housing and active head are made from durable PA material, ensuring longevity and reliability. With a low no-load supply current of ? 10mA and a minimal output voltage drop of ? 1.5V @100mA, these sensors are energy-efficient and reliable. The Datasensing IL1/CP-4A Sensors are the perfect choice for applications requiring precise proximity detection and robust performance.
- Nominal sensing distance:
- 6mm
- Operanting distance:
- 0 4,8mm
- Standard target:
- 18x18mm FE360
- Correction Factor:
- copper: 0,41 / aluminium: 0,50 / brass: 0,55 / stainless steel: 0,75
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 10,3x28x16mm cubic no-flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- 3kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 300mA
- Leakage current:
- ? 0,12mA
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 63g
- Housing Material:
- PA
- Connections:
- 2m PVC Cable
- Active Head Material:
- PA
- Material:
- PA
- Diameter/Dimension:
- 10,3x28x16mm
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
