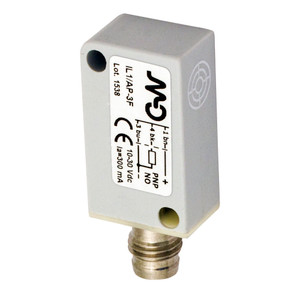

The Datasensing IL1/CP-4A84 Sensors are high-performance inductive sensors designed for precise proximity detection. Featuring an unshielded PNP NC configuration, these sensors come with a 3-meter PVC cable and a 90° angle for versatile installation. With a compact cubic design measuring 10.3x28x16mm, they offer a nominal sensing distance of 6mm and an operating distance of 0 to 4.8mm. The sensors are optimized for various materials with correction factors for copper (0.41), aluminum (0.50), brass (0.55), and stainless steel (0.75). They maintain high accuracy with a thermal drift of Sr under 10% and repeat accuracy under 5% at 24V and 23°C ±5°C. The sensors operate at a switching frequency of 3kHz and support an operating voltage range of 10 to 30Vdc. They are equipped with a yellow LED indicator for output state and offer robust protection features, including short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads. The housing and active head are made from durable PA material, ensuring IP67 mechanical protection and compliance with CE and IEC 60947-5-2 standards. Suitable for harsh environments, they withstand operating temperatures from -25°C to +70°C and are resistant to shocks and vibrations as per IEC standards.
- Nominal sensing distance:
- 6mm
- Operanting distance:
- 0 4,8mm
- Standard target:
- 18x18mm FE360
- Correction Factor:
- copper: 0,41 / aluminium: 0,50 / brass: 0,55 / stainless steel: 0,75
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 10,3x28x16mm cubic no-flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- 3kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 300mA
- Leakage current:
- ? 0,12mA
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Housing Material:
- PA
- Connections:
- 3m PVC Cable
- Active Head Material:
- PA
- Material:
- PA
- Diameter/Dimension:
- 10,3x28x16mm
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Dimensions:
- 28 x 16 x 10,3 mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
