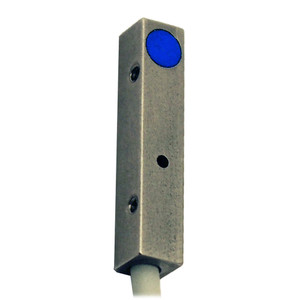

Datasensing IL5/AN-1A Sensors
Datasensing
$105.20
The Datasensing IL5/AN-1A Sensors are compact and reliable inductive sensors designed for precision and durability. With a cubic flush mount design measuring 5x5x25mm, these sensors offer a nominal sensing distance of 0.8mm and an operating distance of 0 to 0.65mm, making them ideal for applications requiring high accuracy. The sensors feature an NPN-NO output type with a switching frequency of up to 7kHz, ensuring quick and efficient performance.
Constructed with AISI303 stainless steel housing and a PBT active head, the IL5/AN-1A sensors are built to withstand harsh environments, operating effectively in temperatures ranging from -25°C to +70°C. They are equipped with a 2m axial PUR cable for easy installation and connectivity. The sensors are protected against short circuits, reverse polarity, impulsive overvoltage, and inductive loads, ensuring long-lasting performance and reliability.
The IL5/AN-1A sensors are IP67 rated, providing excellent protection against dust and water ingress. They are also CE and cULus approved, with EMC compatibility according to IEC 60947-5-2 standards. The sensors come with two screws for secure mounting and feature a blue LED indicator for output state visibility. With a low no-load supply current of ? 10mA and a load current of ? 100mA, these sensors are energy-efficient and suitable for a wide range of industrial applications.
- Nominal sensing distance:
- 0,8mm
- Operanting distance:
- 0 0,65mm
- Standard target:
- 5x5mm FE360
- Correction Factor:
- copper: 0,37 ± 10% / aluminium: 0,27 ± 10% / brass: 0,40 ± 10% / stainless steel: 0,61 ± 10%
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 5x5x25mm cubic flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- ? 7kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Blue LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 35g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PUR Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- 5x5x25mm
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 screws 1.6x0.35 L10mm
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
