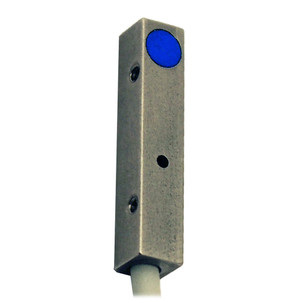

Datasensing IL5/AN-3A Sensors
Datasensing
$116.87
The Datasensing IL5/AN-3A Sensors are compact, cubic inductive sensors designed for precision and reliability. With dimensions of 5x5x25 mm, these sensors offer a nominal sensing distance of 1.5mm and an operating distance of 0 to 1.21mm, making them ideal for applications requiring high accuracy. The sensors are equipped with IP67 protection, ensuring durability in harsh environments. They feature a blue LED output state indicator and provide NPN output with a normally open (NO) function. The IL5/AN-3A sensors operate within a voltage range of 10 to 30Vdc and support a switching frequency of up to 7kHz. They are designed with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring safe and reliable operation. The housing is made from robust AISI303 stainless steel, and the active head is constructed from PBT, providing excellent resistance to environmental factors. These sensors are CE and cULus approved, ensuring compliance with international standards. Ideal for proximity sensing applications, the IL5/AN-3A sensors come with a 2m PUR cable for easy installation and are supplied with two screws for secure mounting.
- Nominal sensing distance:
- 1,5mm
- Operanting distance:
- 0 1,21mm
- Standard target:
- 5x5mm FE360
- Correction Factor:
- copper: 0,37 ± 10% / aluminium: 0,30 ± 10% / brass: 0,40 ± 10% / stainless steel: 0,67 ± 10%
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 5x5x25mm cubic flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- ? 7kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Blue LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 35g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PUR Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- 5x5x25mm
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 screws 1.6x0.35 L10mm
- Mechanical Protection:
- IP67
