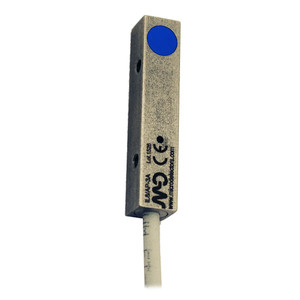

Datasensing IL8/AN-3F Sensors
Datasensing
$126.96
The Datasensing IL8/AN-3F Sensors are precision-engineered cubic inductive sensors designed for reliable proximity detection. With a compact 8x8x59mm form factor, these sensors feature a sensing head positioned at the top, making them ideal for applications requiring precise detection in confined spaces. They offer a nominal sensing distance of 2mm and an operating range of 0 to 1.62mm, ensuring accurate performance with a standard target size of 8x8mm FE360.
Constructed with robust AISI303 stainless steel housing and a PBT active head, these sensors are built to withstand harsh environments, operating efficiently within a temperature range of -25°C to +70°C. The IL8/AN-3F Sensors are equipped with NPN output type and NO output function, supporting a switching frequency of up to 5kHz. They are designed with multiple protective features, including short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and reliability in various industrial settings.
The sensors are shielded for flush mounting and feature an M8 plug connection for easy installation. With a blue LED indicator for output state, they provide clear visual feedback. Certified with CE and cULus approvals and compliant with IEC 60947-5-2 for EMC compatibility, these sensors offer high performance with a degree of protection rated at IP67, making them suitable for use in environments subject to shocks and vibrations.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,21 / aluminium: 0,15 / brass: 0,27 / stainless steel: 0,60
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 8x8x59mm cubic flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- ? 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Blue LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 15g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- M8 Plug
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- 8x8x59mm
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
