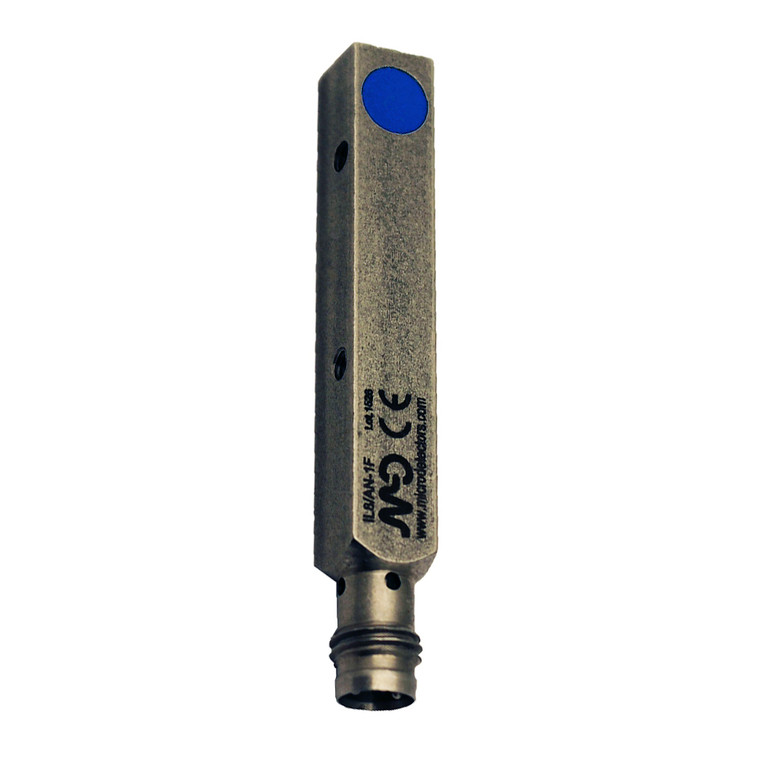

Datasensing IL8/CN-1F Sensors
Datasensing
$108.83
The Datasensing IL8/CN-1F Sensors are compact and efficient inductive sensors designed for precise proximity detection. With a cubic 8x8 mm design and a top detection head, these sensors offer a nominal sensing distance of 1.5mm and an operating range of 0 to 1.21mm. They are equipped with an NPN-NC output type and feature a robust M8 plug connection. The sensors are constructed with durable AISI303 stainless steel housing and a PBT active head, ensuring reliability in various environments. They operate within a voltage range of 10 to 30Vdc and support a load current of up to 200mA, with a switching frequency of up to 5kHz. The IL8/CN-1F sensors are designed with multiple protective features, including short-circuit, reverse polarity, and impulsive overvoltage protection, making them suitable for demanding industrial applications. They are IP67 rated for mechanical protection and can withstand operating temperatures from -25°C to +70°C. Additionally, these sensors are CE and cULus approved, ensuring compliance with international standards.
- Nominal sensing distance:
- 1,5mm
- Operanting distance:
- 0 1,21mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,15 / aluminium: 0,12 / brass: 0,25 / stainless steel: 0,61
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 8x8x59mm cubic flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NC
- Switching frequency:
- ? 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Blue LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 15g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- M8 Plug
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- 8x8x59mm
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
