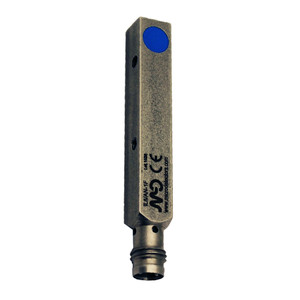

Datasensing IL8/CN-5F Sensors
Datasensing
$142.84
The Datasensing IL8/CN-5F Sensors are compact, high-performance inductive sensors designed for precise proximity detection. With an 8x8 mm cubic design and a top-positioned sensing head, these sensors offer a nominal sensing distance of 2.5mm and an operating range of 0 to 2.02mm. They are equipped with an NPN-NC output type and feature a robust M8 plug connection for easy integration. Constructed from durable AISI303 stainless steel, the sensors are shielded for enhanced protection and are suitable for a wide range of industrial applications. They operate efficiently within a voltage range of 10 to 30Vdc, with a low no-load supply current of ? 10mA and a load current capacity of ? 200mA. The sensors are designed to withstand harsh environments, offering IP67 protection against dust and water ingress, and are resistant to shocks and vibrations as per IEC standards. Additional features include short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable performance. The blue LED indicator provides a clear output state, and the sensors are CE and cULus approved, ensuring compliance with international safety standards. Ideal for applications requiring precise and reliable proximity sensing, the Datasensing IL8/CN-5F Sensors are a versatile choice for modern industrial environments.
- Nominal sensing distance:
- 2,5mm
- Operanting distance:
- 0 2,02mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,15 / aluminium: 0,12 / brass: 0,25 / stainless steel: 0,61
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 8x8x59mm cubic flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NC
- Switching frequency:
- ? 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Blue LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 15g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- M8 Plug
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- 8x8x59mm
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
