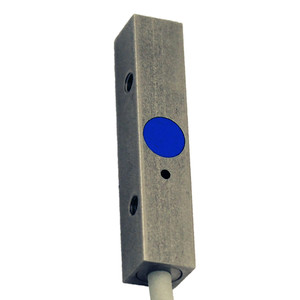

The Datasensing IL9/AP-1A Sensors are high-performance inductive sensors designed for precise proximity detection. Featuring an 8x8 mm cubic flush mount with a centre detection head, these sensors offer a nominal sensing distance of 1.5mm and an operating range of 0 to 1.21mm. Constructed with durable AISI303 stainless steel housing and a PBT active head, they ensure reliable operation in harsh environments with an IP67 protection rating. The sensors are equipped with a 2m axial PUR cable for easy installation and connectivity. With a PNP-NO output type, they support a switching frequency of up to 5kHz and operate efficiently within a voltage range of 10 to 30Vdc. Additional features include short-circuit, reverse polarity, and impulsive overvoltage protection, as well as a blue LED indicator for output state. Ideal for applications requiring high accuracy and repeatability, the IL9/AP-1A sensors are CE and cULus approved, ensuring compliance with international standards.
- Nominal sensing distance:
- 1,5mm
- Operanting distance:
- 0 1,21mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,16 / aluminium: 0,11 / brass: 0,22 / stainless steel: 0,61
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 8x8x40mm cubic flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- ? 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Blue LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 35g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PUR Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- 8x8x40mm
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
