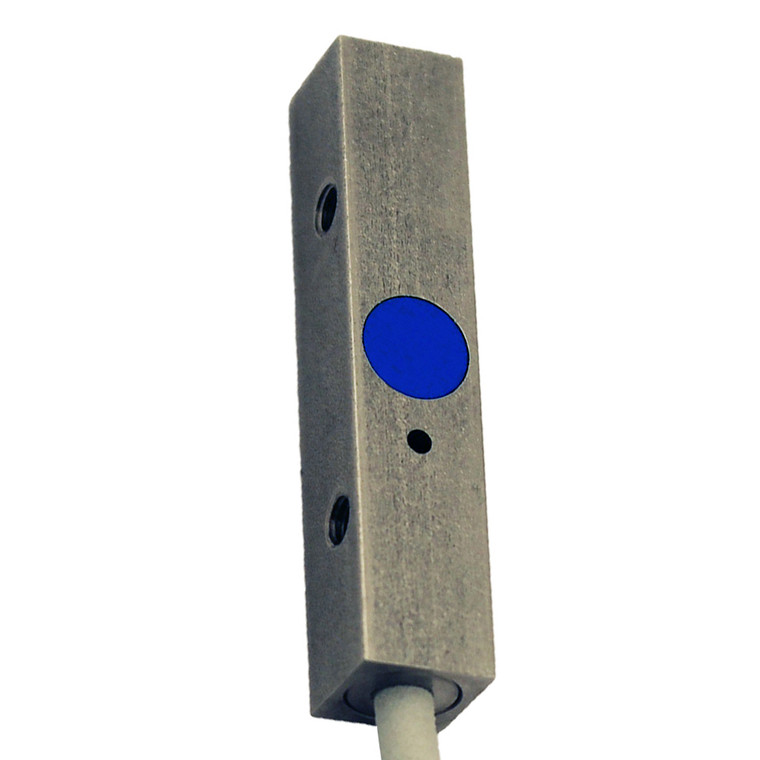

Datasensing IL9/AP-3AVF80 Sensors
Datasensing
$162.28
The Datasensing IL9/AP-3AVF80 Sensor is a high-performance inductive sensor designed for precise centre detection. With a compact 8x8x40mm cubic flush mount design, it offers a nominal sensing distance of 2mm and operates efficiently within a range of 0 to 1.62mm. This sensor is equipped with a PNP-NO output type and features an M8 pigtail plug with a 200mm PUR cable for easy connectivity. It boasts a robust AISI303 stainless steel housing and a PBT active head, ensuring durability and reliability in various industrial environments.
The IL9/AP-3AVF80 Sensor is engineered with advanced features such as short-circuit, reverse polarity, and impulsive overvoltage protection, making it a safe and reliable choice for demanding applications. It operates within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. The sensor's blue LED indicator provides a clear output state, and it has a switching frequency of up to 5kHz.
Designed to withstand harsh conditions, this sensor is IP67 rated for mechanical protection and is compatible with IEC 60947-5-2 EMC standards. It can operate in temperatures ranging from -25°C to +70°C and is resistant to shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. The Datasensing IL9/AP-3AVF80 Sensor is an ideal solution for applications requiring precise proximity detection and reliable performance.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,19 / aluminium: 0,15 / brass: 0,25 / stainless steel: 0,61
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 8x8x40mm cubic flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- ? 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Blue LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 10g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 200mm PUR Cable + M8 Plug
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- 8x8x40mm
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
