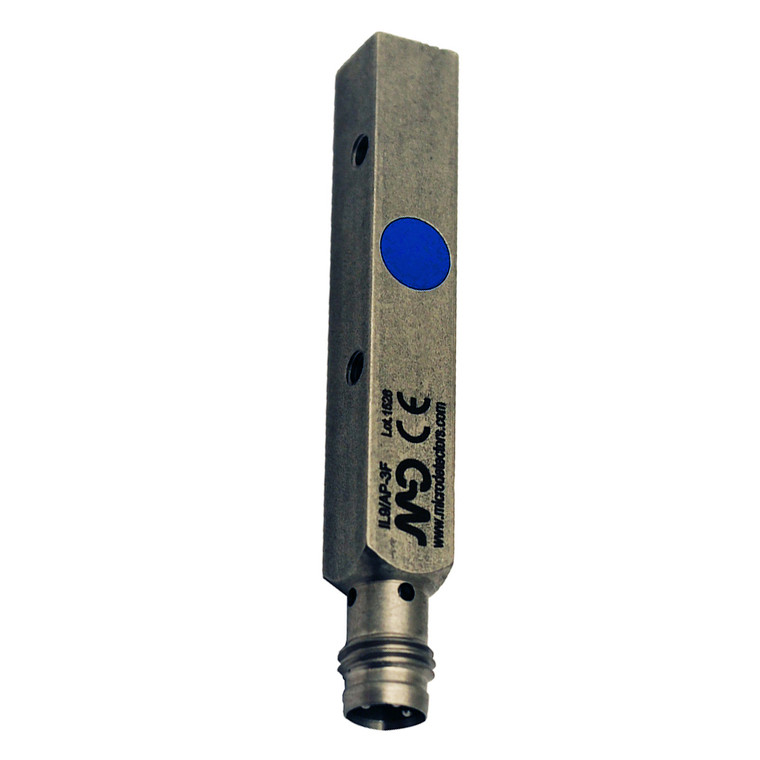

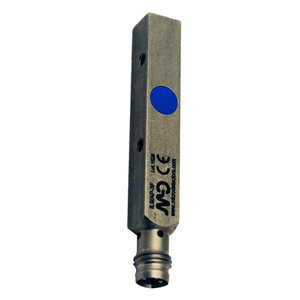

Datasensing IL9/AP-5F Sensors
Datasensing
$143.79
The Datasensing IL9/AP-5F Sensors are high-performance inductive sensors designed for precise proximity detection. Featuring an 8x8 mm cubic design with a centrally located sensing head, these sensors offer a nominal sensing distance of 2.5mm and an operating range of 0 to 2.02mm. They are equipped with a PNP-NO output type and an M8 plug for easy connectivity. The sensors are constructed with durable AISI303 stainless steel housing and a PBT active head, ensuring robust performance in challenging environments. With a switching frequency of up to 5kHz and a load current capacity of up to 200mA, these sensors are ideal for high-speed applications. They include advanced protection features such as short-circuit, reverse polarity, and impulsive overvoltage protection, along with IP67-rated mechanical protection for reliable operation in harsh conditions. The sensors are also equipped with a blue LED indicator for output state visibility and are compliant with CE and cULus standards, ensuring high safety and quality. Suitable for a wide range of industrial applications, the IL9/AP-5F Sensors provide accurate and reliable detection with minimal thermal drift and repeat accuracy of less than 5%.
- Nominal sensing distance:
- 2,5mm
- Operanting distance:
- 0 2,02mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,18 / aluminium: 0,16 / brass: 0,26 / stainless steel: 0,58
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 8x8x59mm cubic flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- ? 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Blue LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 15g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- M8 Plug
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- 8x8x59mm
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
