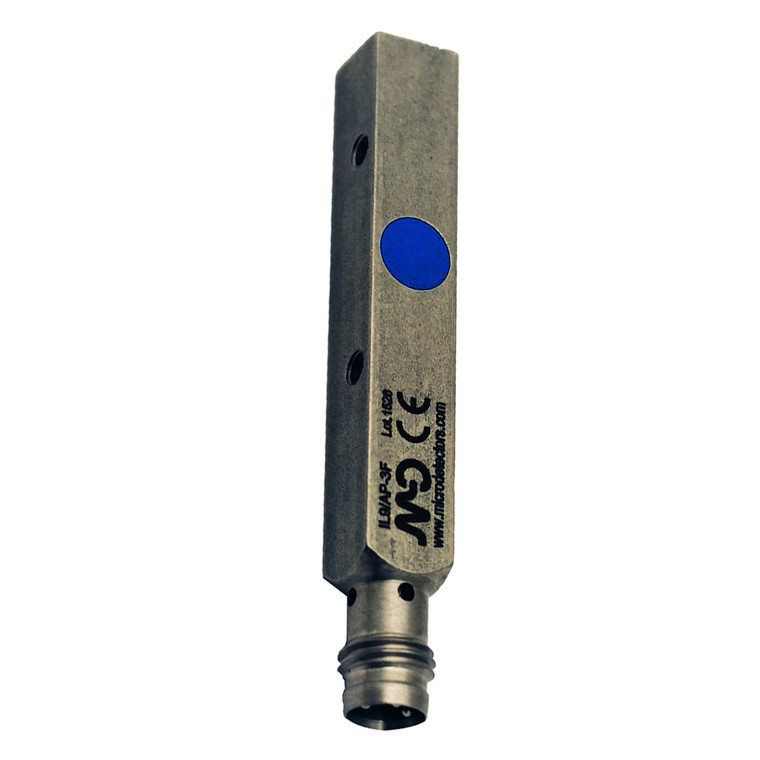

The Datasensing IL9/CN-1F Sensors are high-performance cubic inductive sensors designed for precise proximity detection. With a compact 8x8x59mm size and a sensing head positioned at the center, these sensors offer a nominal sensing distance of 1.5mm and an operating range of 0 to 1.21mm. They are equipped with an NPN-NC output type and feature a robust M8 plug connection. The sensors are constructed with durable AISI303 stainless steel housing and PBT active head material, ensuring reliability in demanding environments.
These sensors boast a high switching frequency of up to 5kHz and are protected against short-circuits, reverse polarity, impulsive overvoltage, and inductive loads. They operate efficiently within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. The blue LED indicator provides a clear output state, and the sensors are ready for use with a time delay of ? 50ms.
Designed to withstand harsh conditions, the IL9/CN-1F sensors are IP67 rated for mechanical protection and are compliant with EMC standards IEC 60947-5-2. They are also approved by CE and cULus, ensuring high standards of safety and performance. Ideal for applications requiring precise and reliable detection, these sensors are perfect for industrial automation and control systems.
- Nominal sensing distance:
- 1,5mm
- Operanting distance:
- 0 1,21mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,16 / aluminium: 0,11 / brass: 0,22 / stainless steel: 0,61
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 8x8x59mm cubic flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NC
- Switching frequency:
- ? 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Blue LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 15g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- M8 Plug
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- 8x8x59mm
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
