Datasensing IL9/CP-1F Sensors
Datasensing
$115.03

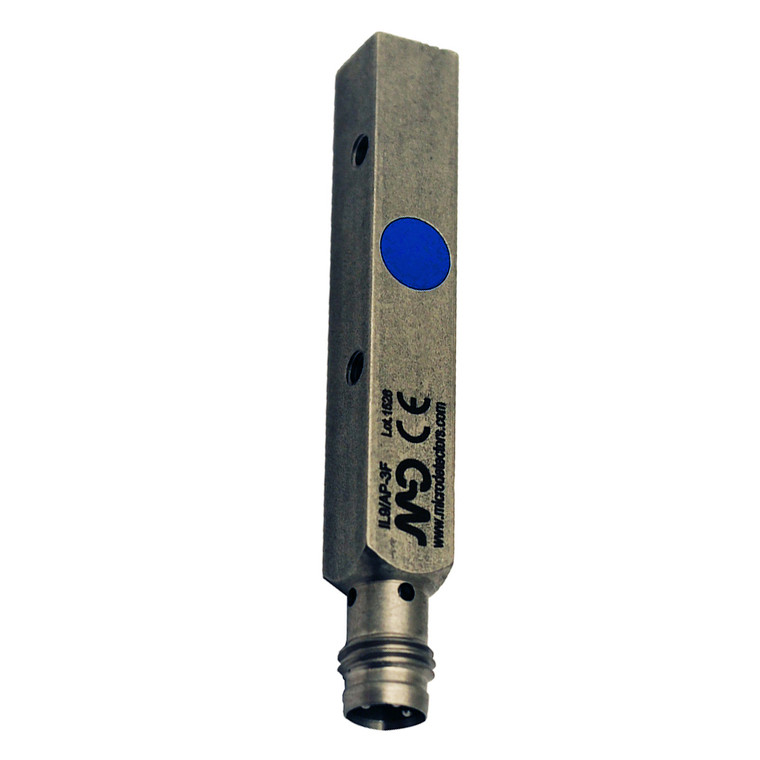

The Datasensing IL9/CP-1F Sensors are high-performance inductive sensors designed for precise proximity detection. Featuring an 8x8 mm cubic design with a centrally located sensing head, these sensors offer a nominal sensing distance of 1.5mm and an operating range of 0 to 1.21mm. They are equipped with a PNP-NC output type and an M8 plug for easy connectivity. The sensors are constructed with durable AISI303 stainless steel housing and PBT active head material, ensuring robust performance in challenging environments. With IP67 protection, they are resistant to dust and water ingress, making them suitable for industrial applications. The sensors also include advanced features such as short-circuit, reverse polarity, and impulsive overvoltage protection, along with a blue LED indicator for output state. Operating efficiently within a voltage range of 10 to 30Vdc, they support a load current of up to 200mA and a switching frequency of ? 5kHz. The IL9/CP-1F Sensors are CE and cULus approved, ensuring compliance with international standards for safety and electromagnetic compatibility. Ideal for applications requiring reliable and accurate detection, these sensors are engineered to withstand temperatures from -25°C to +70°C and are designed to handle shocks and vibrations as per IEC standards.
- Nominal sensing distance:
- 1,5mm
- Operanting distance:
- 0 1,21mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,16 / aluminium: 0,11 / brass: 0,22 / stainless steel: 0,61
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 8x8x59mm cubic flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- ? 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Blue LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 15g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- M8 Plug
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- 8x8x59mm
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
