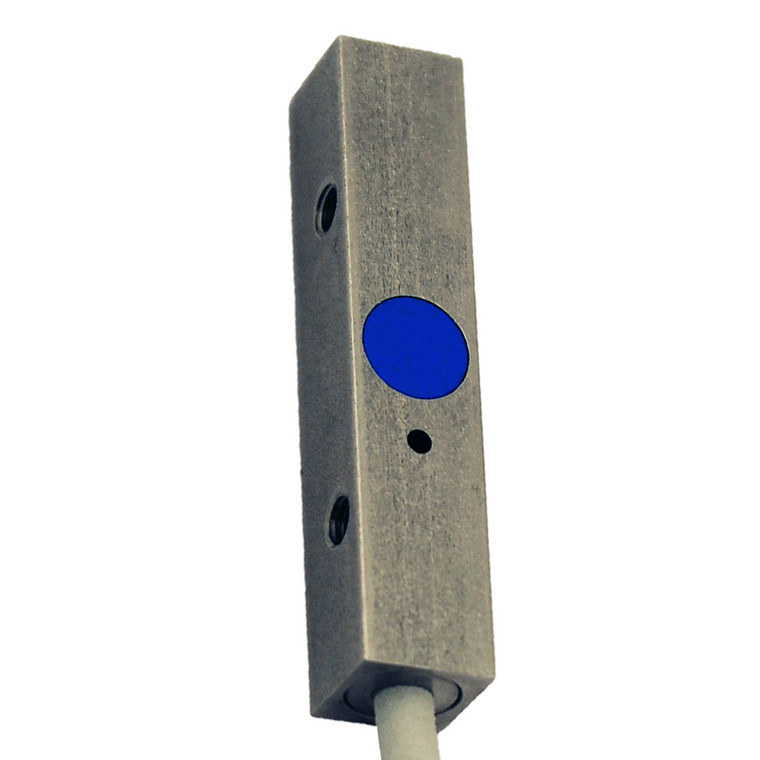

Datasensing IL9/CP-3A Sensors
Datasensing
$141.26
The Datasensing IL9/CP-3A Sensors are high-performance inductive sensors designed for precise proximity detection. Featuring an 8x8 mm cubic flush mount with a centre detection head, these sensors offer a nominal sensing distance of 2mm and an operating range of 0 to 1.62mm. Constructed with durable AISI303 stainless steel housing and a PBT active head, they ensure reliable operation in harsh environments with an IP67 protection rating. The sensors are equipped with a 2m axial PUR cable for easy installation and connectivity.
With a PNP-NC output type, the IL9/CP-3A sensors provide a switching frequency of up to 5kHz, making them suitable for high-speed applications. They operate within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. The sensors feature short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring safe and stable performance.
The IL9/CP-3A sensors are designed to withstand extreme temperatures ranging from -25°C to +70°C and are compliant with EMC standards IEC 60947-5-2. They also meet vibration and shock resistance standards IEC 60068-2-6 and IEC 60068-2-27, respectively. With a blue LED indicator for output state and a time delay before availability of ? 50ms, these sensors offer reliable and efficient operation for various industrial applications.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 8x8mm FE360
- Correction Factor:
- copper: 0,19 / aluminium: 0,15 / brass: 0,25 / stainless steel: 0,61
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- 8x8x40mm cubic flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- ? 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,5V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Blue LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 35g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- 2m PUR Cable
- Active Head Material:
- PBT
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- 8x8x40mm
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
