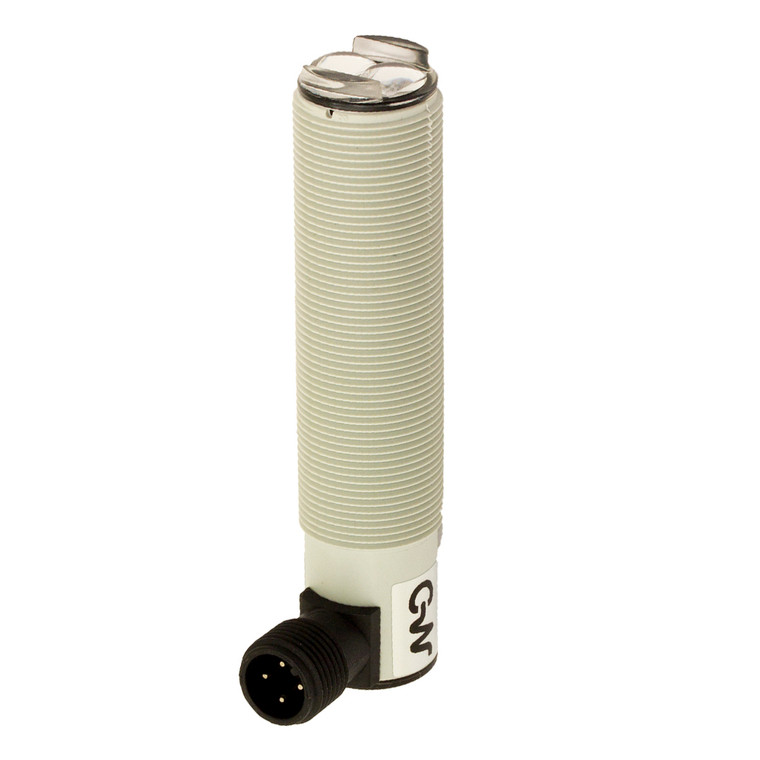

Datasensing LDLU/0N-0K Sensors
Datasensing
$298.54
The Datasensing LDLU/0N-0K Sensors are advanced photoelectric luminescent scanners designed for precision and reliability. Featuring both white and ultraviolet light emission, these sensors offer a versatile solution for various applications. With a nominal sensing distance of 12mm using STF-12 and 25mm with SFT-25, they ensure accurate detection with minimal thermal drift. The sensors boast a short response time of 50 µs and a high switching frequency of 10kHz, making them ideal for fast-paced environments.
Equipped with a multifunction LED status indicator, the sensors provide clear visual feedback with yellow indicating output status and green for power ON. The LO/DO selectable outputs and sensitivity adjustment allow for customizable operation, while the delay feature enhances flexibility. Built to withstand challenging conditions, the sensors offer complete protection against electrical damages, including short-circuit and reverse polarity protection, and are rated IP65 for dust and water resistance.
The M18 housing, made from durable PBT material, ensures robustness, and the M12 plug connection at a 90° angle facilitates easy installation. Operating efficiently within a voltage range of 10
30VDC, these sensors maintain low power consumption with a no-load supply current of ? 40mA. Designed to handle interference from external light sources up to 3000 lux (incandescent lamp) and 10000 lux (sunlight), they deliver reliable performance in diverse lighting conditions.
With approvals from CE and EMC compatibility with EN 60947-5-2, the Datasensing LDLU/0N-0K Sensors are a dependable choice for industrial applications requiring precise luminescence detection.
- Nominal sensing distance:
- 12mm (with STF-12) 25mm (with SFT-25)
- Thermal drift of Sr:
- ? 10%
- Spot dimension:
- Ø 1mm (with STF-12) Ø 0,8mm (with SFT-25)
- Function Principle:
- Luminescence
- Notes:
- white target Kodak 90% 100 x 100mm
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 10Khz
- Response time:
- 50 µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Leakage current:
- ? 10µA
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (output status) Green(powerON)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED UV
- Interference to external light:
- 3000 lux (incandescent lamp) 10000 lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Housing Material:
- PBT
- Connections:
- M12 plug 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- -5°C +55°C (without freeze)
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP65
- Supplied Accessories:
- nuts M18 x 1
- Accessories to be ordered separately:
- Focalizer STF-12 Focalizer STF-25
- Operating Temperature:
- - 5°C + 55° C (Without freeze)
- Mechanical Protection:
- IP65
