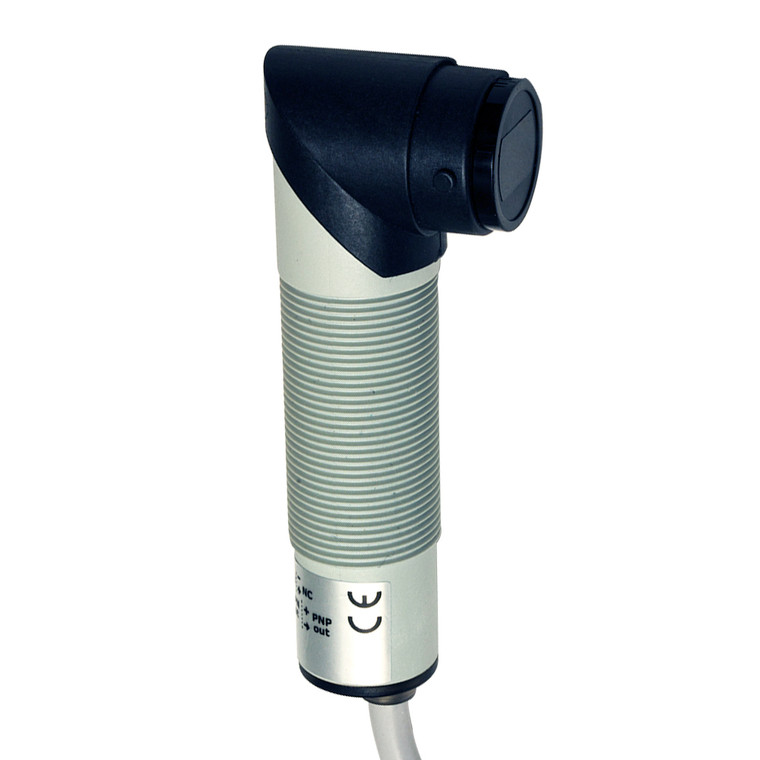

Datasensing MP2/00-0A Sensors
Datasensing
$118.83
The Datasensing MP2/00-0A Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 100mm, these sensors are ideal for short-distance applications. The sensor's radial 90° optic position and compact dimensions (M18 x 1 /L =74,7 x 29,7mm) make it suitable for various industrial environments.
Equipped with a robust PBT/PC housing and PMMA active head material, the MP2/00-0A ensures durability and longevity, even in challenging conditions. It operates efficiently within a temperature range of -25°C to +70°C and offers complete protection against electrical damage, including short-circuit and overvoltage protection.
The sensor's output type is selectable between NPN/PNP and NO/NC, providing flexibility for different applications. With a high switching frequency of 80Hz and a quick response time of 6.25ms, it guarantees fast and accurate performance. The LED indicators provide clear status output, while the sensor's interference resistance to external light ensures reliable operation in various lighting conditions.
The MP2/00-0A is CE and cURus approved, meeting EMC compatibility standards (EN 60947-5-2) and offering mechanical protection with an IP67 rating. Supplied with M18 x 1 nuts, this sensor is easy to install and integrate into existing systems. Ideal for applications requiring precise detection and robust performance, the Datasensing MP2/00-0A Sensors are a reliable choice for industrial automation needs.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Radial 90°
- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 80Hz
- Response time:
- 6,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Weight:
- 70g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- 25°C..+ 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
