Datasensing MPE/00-0A86 Sensors
Datasensing
$105.03

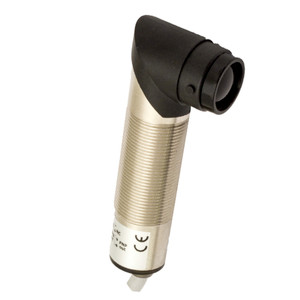

The Datasensing MPE/00-0A86 Sensor is a high-performance photoelectric sensor designed for precision and reliability. Featuring a right-angle M18 emitter with a durable plastic cable, this sensor offers a nominal sensing distance of 16m (MPR) and 32m (MPD). It boasts a thermal drift of Sr ?10% and a repeat accuracy of 5%, ensuring consistent performance. The sensor operates on a voltage range of 10
30VDC with a no-load supply current of ? 15mA and a maximum ripple content of ?10%. It includes a red LED indicator for power status and offers short-circuit and overvoltage protection for enhanced safety. The sensor's optic position is radial at 90°, and it emits LED infrared light at 880nm, withstanding interference from external light up to 3000lux (incandescent) and 10000lux (sunlight). Constructed with PBT/PC housing and a PMMA active head, it is designed to endure harsh conditions with an IP67 mechanical protection rating. The sensor is EMC compatible with EN 60947-5-2 standards and is approved by CE and cURus. It comes with M18 x 1 nuts for easy installation and operates efficiently in temperatures ranging from -25°C to +70°C.
- Nominal sensing distance:
- 16m (MPR), 32m (MPD)
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Emitter
- Emitter/Receiver:
- Emitter
- Optic position:
- Radial 90°
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 15mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (powerON)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Housing Material:
- PBT / PC cable exit
- Connections:
- 5m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1
- Dimensions:
- M18 x 1 /L =74,7 x 29,7mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
