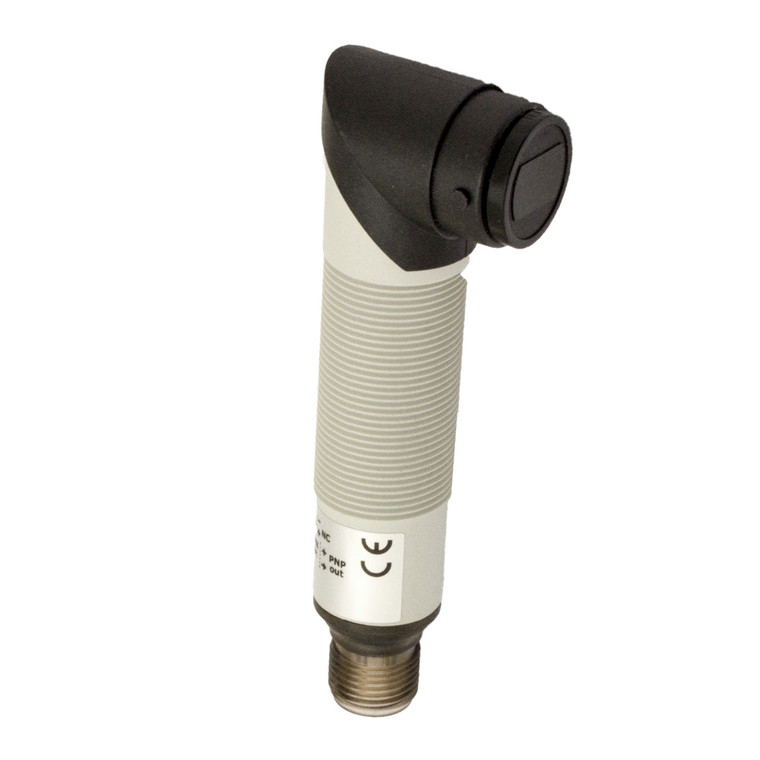

Datasensing MPR/00-0E Sensors
Datasensing
$129.36
The Datasensing MPR/00-0E Sensors are advanced photoelectric sensors designed for precision and reliability in various industrial applications. Featuring a right-angle M18 receiver, these sensors offer a nominal sensing distance of 16 meters, making them ideal for long-range detection tasks. The sensors are equipped with a plastic M12 connector and provide selectable NPN/PNP NO/NC output types, ensuring flexibility in integration with different systems.
These sensors boast a wide range of models, including diffuse, retro-reflective, polarized, through-beam detection, and background suppression, catering to diverse sensing needs. The through-beam models are particularly notable for their high sensing range, while the retro-reflective models utilize red visible polarized light for enhanced accuracy. The background suppression models come with a fixed distance feature, ensuring consistent performance.
Built to withstand challenging environments, the MPR/00-0E Sensors offer complete protection against electrical damage, including short-circuit protection with auto-reset and overvoltage protection. They are designed to operate efficiently within a temperature range of -25°C to +70°C and are housed in a robust PBT/PC plug with an IP67 degree of protection, ensuring durability and resistance to shocks and vibrations.
With a response time of 16.66ms and a switching frequency of 30Hz, these sensors deliver quick and reliable performance. The LED indicators provide clear status output, and the sensors are compatible with EMC standards EN 60947-5-2. Supplied with M18 x 1 nuts, the Datasensing MPR/00-0E Sensors are ready for seamless installation and integration into your industrial setup.
- Nominal sensing distance:
- 16m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Radial 90°
- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 30Hz
- Response time:
- 16,66ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- 25°C..+ 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
