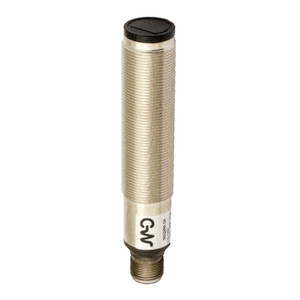

Datasensing MS2/00-1H Sensors
Datasensing
$125.51
The Datasensing MS2/00-1H Sensors are advanced photoelectric sensors designed for precise detection tasks. Featuring a diffuse reflection principle, these sensors offer a nominal sensing distance of 100mm, ideal for short-distance applications. Constructed with a robust nickel-plated brass housing and a PMMA active head, they ensure durability and reliability in various environments. The sensors are equipped with an M12 metal connector for secure and easy installation.
With a repeat accuracy of 5% and a switching frequency of 80Hz, the MS2/00-1H Sensors provide consistent performance. They operate within a voltage range of 10 to 30VDC, with a no-load supply current of ?40mA and a load current of ?100mA. The output type is selectable between NPN/PNP and NO/NC, offering flexibility for different applications. The sensors are protected against short circuits and overvoltage, ensuring long-term operational safety.
Designed to withstand harsh conditions, these sensors have an IP67 mechanical protection rating and are approved by CE and cURus standards. They are also compatible with EMC standard EN 60947-5-2 and can endure vibrations and shocks as per IEC standards. The MS2/00-1H Sensors come with M18 x 1 nuts for easy mounting and are suitable for operating temperatures ranging from -25°C to +70°C. With LED indicators for status output and a quick response time of 6.25ms, these sensors are a reliable choice for industrial automation and control systems.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 80Hz
- Response time:
- 6,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1
- Dimensions:
- M18 x 1 /L =93mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
