Datasensing MS3/00-0E Sensors
Datasensing
$110.26
The Datasensing MS3/00-0E Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 100mm, these sensors are ideal for short-distance applications. The MS3/00-0E model offers a wide range of detection capabilities, including retro-reflective, polarized, through-beam detection, and background suppression, ensuring versatility for various industrial needs.
Equipped with a robust M12 plastic connector and an axial optic position, these sensors provide easy installation and integration. The output type is selectable between NPN/PNP and NO/NC, offering flexibility in output function. With a high switching frequency of 80Hz and a rapid response time of 6.25ms, the MS3/00-0E ensures quick and accurate performance.
Built to withstand challenging environments, the sensor features complete protection against electrical damage, including short-circuit and overvoltage protection. It operates efficiently within a voltage range of 10 to 30VDC, with a low no-load supply current of ?40mA. The sensor's housing is made from durable PBT/PC material, providing IP67-rated mechanical protection against dust and water ingress.
The MS3/00-0E is designed to handle thermal drift of ?10% Sr and maintain a repeat accuracy of 5%, ensuring consistent performance. It is equipped with LED indicators for status output and can resist interference from external light sources up to 3000lux (incandescent lamp) and 10000lux (sunlight).
With dimensions of M18 x 1 /L =93mm and a weight of 30g, the sensor is compact and lightweight, making it suitable for various applications. It comes with supplied accessories, including M18 x 1 nuts and a screwdriver, for convenient setup. The sensor is approved with CE and cURus certifications and complies with EMC compatibility standards EN 60947-5-2, ensuring reliability and safety in operation.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial

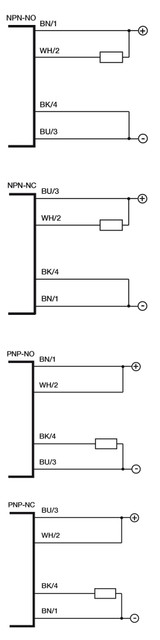

- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 80Hz
- Response time:
- 6,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- 25°C..+ 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
