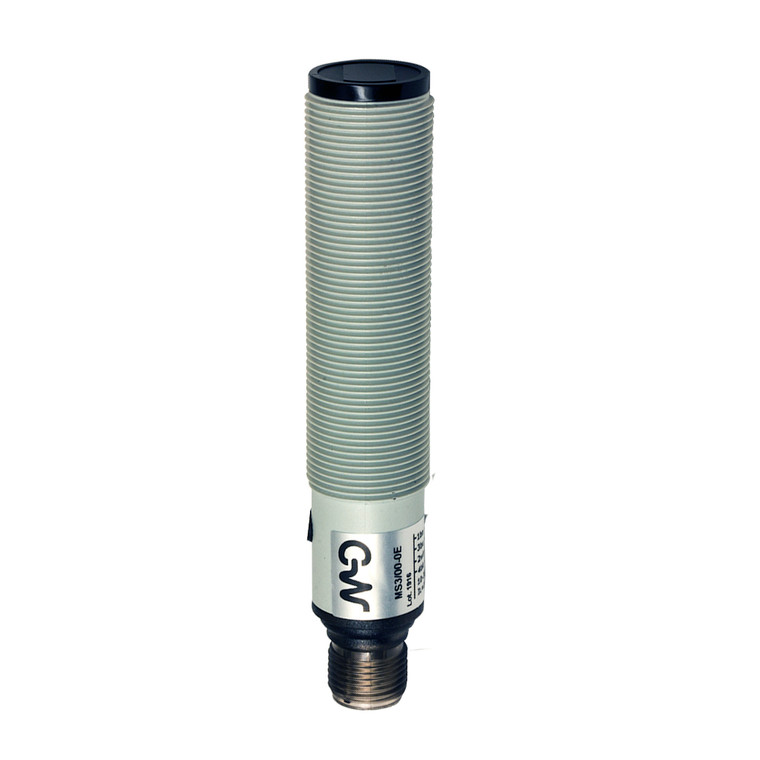

Datasensing MS7/00-0E Sensors
Datasensing
$135.37
The Datasensing MS7/00-0E Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 400mm, these sensors are ideal for medium-distance applications. The MS7/00-0E model is equipped with an axial optic position and offers selectable NO/NC output functions, providing flexibility in various setups. With a high switching frequency of 80Hz and a rapid response time of 6.25ms, these sensors ensure quick and accurate performance.
Built to withstand challenging environments, the MS7/00-0E sensors boast a robust PBT/PC housing with an IP67 degree of protection, making them resistant to dust and water ingress. The sensors are equipped with short-circuit and overvoltage protection, ensuring durability and longevity. The LED infrared emission at 880nm and red status output indicators provide clear operational feedback.
Designed for ease of use, the sensors come with an M12 plug connection and include supplied accessories such as M18 x 1 nuts and a screwdriver for convenient installation. The compact dimensions of M18 x 1 / L = 78.9mm and a lightweight design of 30g make them suitable for a wide range of industrial applications. Operating efficiently within a temperature range of -25°C to +70°C, the Datasensing MS7/00-0E Sensors are CE and cURus approved, ensuring compliance with international standards.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Axial
- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 80Hz
- Response time:
- 6,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- 25°C..+ 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
