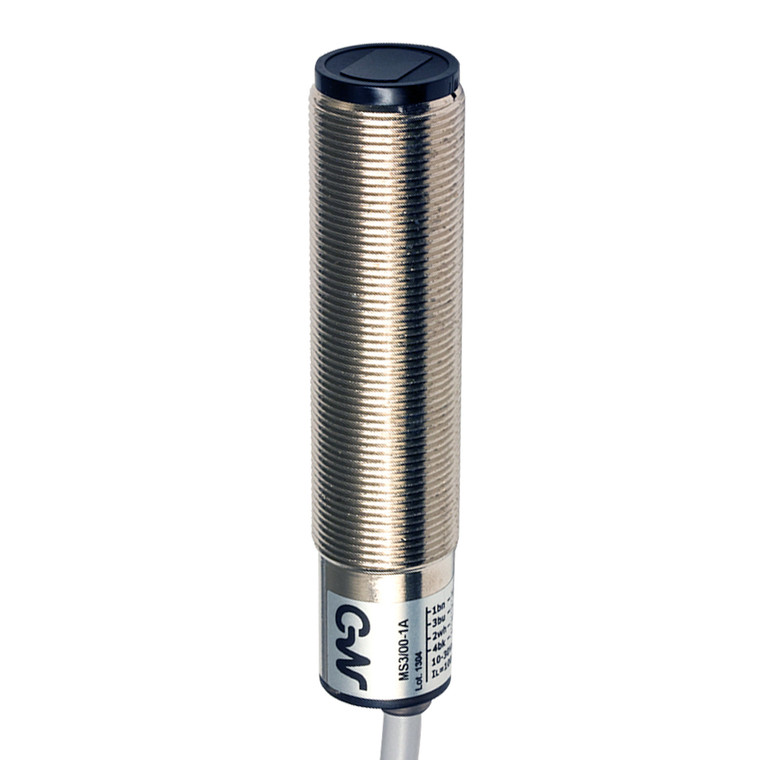

Datasensing MS7/00-1A Sensors
Datasensing
$144.09
The Datasensing MS7/00-1A Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 400mm, these sensors are ideal for medium-distance applications. The robust nickel-plated brass housing ensures durability, while the axial optic position and 2m PVC cable provide flexibility in installation. With a high switching frequency of 80Hz and a rapid response time of 6.25ms, these sensors deliver quick and accurate performance. The MS7/00-1A model includes selectable NO/NC output functions and is equipped with red LED indicators for status output. It operates efficiently within a voltage range of 10 to 30VDC, with a low no-load supply current of ?40mA. The sensor is protected against short circuits, overvoltage, and impulsive overvoltage, ensuring reliable operation in various environments. It is designed to withstand external light interference up to 3000lux from incandescent lamps and 10000lux from sunlight. The sensor's compact dimensions (M18 x 1 / L = 78.9mm) and lightweight design (130g) make it easy to integrate into existing systems. With CE and cURus approvals, as well as EMC compatibility with EN 60947-5-2, the Datasensing MS7/00-1A Sensors are a dependable choice for industrial applications requiring high precision and resilience.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Axial
- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 80Hz
- Response time:
- 6,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- 25°C..+ 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
