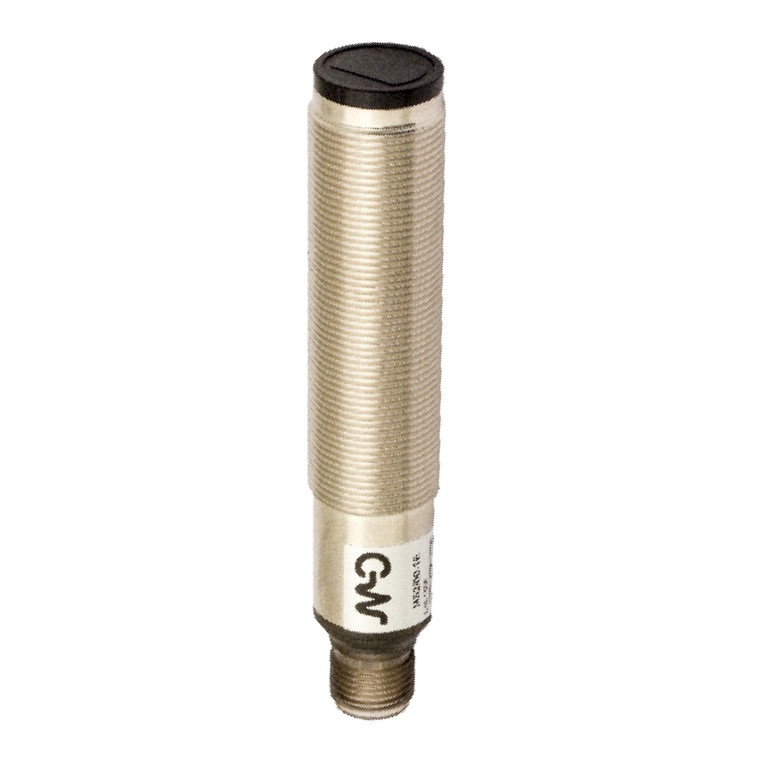

Datasensing MS7/00-1E Sensors
Datasensing
$152.44
The Datasensing MS7/00-1E Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 400mm, these sensors are ideal for medium-distance applications. The robust nickel-plated brass housing ensures durability, while the M12 connection provides easy installation. With a high switching frequency of 80Hz and a rapid response time of 6.25ms, these sensors deliver quick and accurate performance. The MS7/00-1E models offer selectable NO/NC output functions and are equipped with red LED indicators for status output. They are protected against short circuits, overvoltage, and impulsive overvoltage, ensuring complete protection against electrical damage. The sensors are designed to withstand harsh environments with an IP67 degree of protection and are compatible with EMC standards EN 60947-5-2. Ideal for a wide range of applications, these sensors come with supplied accessories, including M18 nuts and a screwdriver, for convenient setup.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Axial
- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 80Hz
- Response time:
- 6,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- 25°C..+ 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
